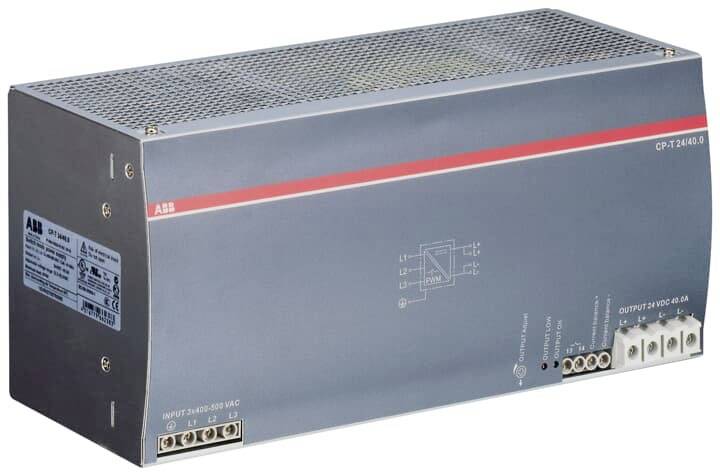

ABB CP-T 24/40.0 Rail mounted PSU (DIN) 24 V DC 40 A 960 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Nominal input voltage
3 x 400 - 500 V/AC
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
400 V
- Inputs
3
- Input voltage (max.)
500 V
- Max. output current
40 A
- Output current (max.) - rounded
40 A
960 W
- Phases
3
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x
- Dim
(W x H) 276 mm x 121 mm
- Output voltage (max.)
24 V DC
- Operating temperature (max.)
70 °C
- Manufacturer part #
1SVR427057R0000
- Content
1 pc(s)
- Width
276 mm
- Height
121 mm
- Max. temperature
70 °C
- Type
CP-T 24/40.0
- Efficiency
92 %
276
131 mm
121 mm
131 mm
1058 W
276 mm
FALSE
FALSE
AC/DC
Screw connection
TRUE
IP20
None
None
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2324059 ABB CP-T 24/40.0 Rail mounted PSU (DIN) 24 V DC 40 A 960 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2324059 ABB CP-T 24/40.0 Rail mounted PSU (DIN) 24 V DC 40 A 960 W No. of outputs:1 x Content 1 pc(s)
Description
The CP-T series comprises three-phase power supplies and is the latest member of the ABB power supply family. In terms of design and function, the new series perfectly complements the existing product range and extends the series accordingly. The devices can be supplied with rotational voltage and with a two-phase power supply. ABB offers 24 VDC and 48 VDC outputs with 5 A, 10 A, 20 A and 40 A power supplies with up to 92% efficiency. Like all other products, the power supplies are designed for an ambient temperature of up to 70 °C. All products can be supplied with an AC supply voltage between 340 and 575 V AC and a DC supply voltage between 480 and 820 V DC.
