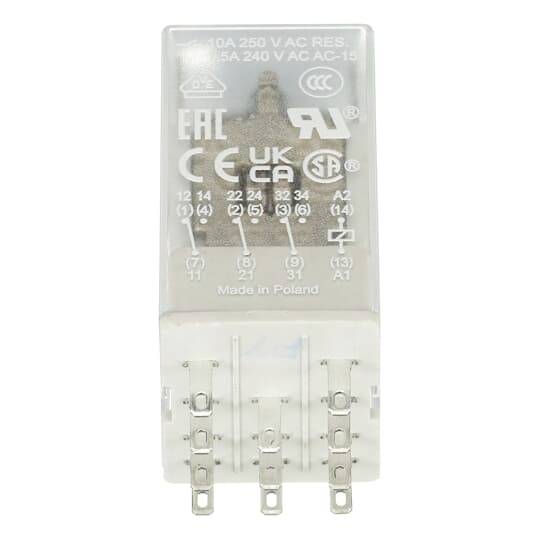

ABB CR-M024DC3 Interface relay 24 V DC 3 change-overs 1 pc(s)
EAN:
Part number:
Item no:
Product type
Interface relay
Contact type
3 change-overs
Nominal voltage
24 V DC
Switching voltage (max.)
250 V AC
Type
CR-M024DC3
Technical specifications
- Product type
Interface relay
- Type
CR-M024DC3
- Connection
CEE 7/16 CEE plug
- Contact type
3 change-overs
- Contact material
AgNi
- Nominal voltage
24 V DC
- Switching voltage (max.)
250 V AC
IP40
Relay protection type RT I
- Depth
27.5 mm
- Width
21.2 mm
- Height
35.6 mm
- Dim
(W x H x D) 21.2 x 35.6 x 27.5 mm
- Content
1 pc(s)
- Nominal current
10 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3786969 ABB CR-M024DC3 Interface relay 24 V DC 3 change-overs 1 pc(s)
Description
As an interface, interface relays connect the electronic control level, for example PLC, to the level of sensors/actuators. Here they take over various functions: Switching of direct or alternating current loads with different ohmic, inductive and capacitive proportions, switching in the voltage range from a few mV to 250 V, switching in the current strength range from a few mA to 12 A, amplification of weak control signals, potential separation of control and load circuits as well as signal multiplication. The CR-M series has 13 different coil voltages with 2-4 changeover contacts. You can select an in-built test button for manual operation and locking of the output contacts as well as relay variants with or without built-in LED Two socket versions are available: Standard socket and logical socket. Plug-in function modules such as reverse polarity protection / snubber diode, RC links or surge protection add to the range of applications of this pluggable miniature relay.
