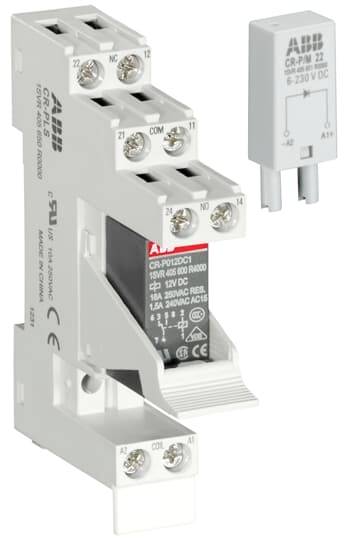

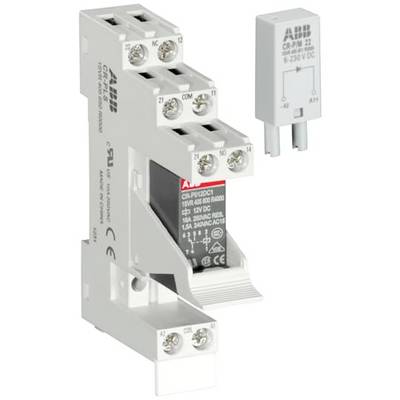

ABB CR-P230AC2SS92CV Interface relay Switching current (max.): 8 A 2 change-overs Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Interface relay
Contact type
2 change-overs
Switching voltage (max.)
250 V DC/AC
Switching current (max.)
8 A
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Interface relay
- Type
CR-P230AC2SS92CV
- Connection
Screw terminal
- Max. pick-up voltage
230 V AC
- Contact type
2 change-overs
- Contact material
AgNi
- Switching voltage (max.)
250 V DC/AC
- Switching current (max.)
8 A
- Features
pluggable
- Length
76 mm
- Width
16 mm
- Height
69 mm
- Dim
(L x W x H) 76 x 16 x 69 mm
- Content
1 pc(s)
8 A
16 mm
69 mm
76 mm
FALSE
Polarized
Mono stable
FALSE
Single contact
TRUE
Screw connection
230-230 V
230-230 V
Other
FALSE
Other
AC
0
0
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3111333 ABB CR-P230AC2SS92CV Interface relay Switching current (max.): 8 A 2 change-overs Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3111333 ABB CR-P230AC2SS92CV Interface relay Switching current (max.): 8 A 2 change-overs Piece 1 pc(s)
Description
As an interface, interface relays connect the electronic control level, for example PLC, to the level of sensors/actuators. Here they take over various functions: Switching of direct or alternating current loads with different ohmic, inductive and capacitive proportions, switching in the voltage range from a few mV to 250 V, switching in the current strength range from a few mA to 16 A, amplification of weak control signals, potential separation of control and load circuits as well as signal multiplication. The CR-P series has 9 different coil voltages with 1-2 changeover contacts. Two socket versions are available: Standard socket and logical socket. Plug-in function modules such as reverse polarity protection / snubber diode, LED module, RC links, overvoltage protection or time modules add to the range of applications on pluggable PCB relays.
