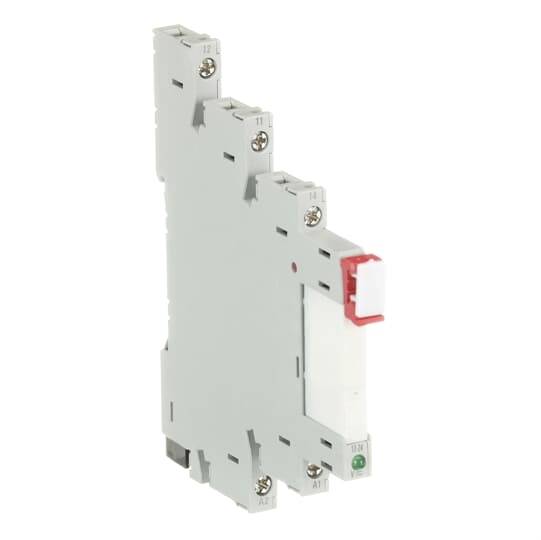

ABB CR-S024VADC1CRGS Interface relay 24 V AC, 24 V DC 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Product type
Interface relay
Contact type
1 change-over
Nominal voltage
24 V AC
24 V DC
Type
CR-S024VADC1CRGS
Connection
Screws
Technical specifications
- Product type
Interface relay
- Type
CR-S024VADC1CRGS
- Connection
Screws
- Contact type
1 change-over
- Contact material
AgSnO2
- Nominal voltage
24 V AC
24 V DC
IP20
Relay protection type RT I
- Depth
88.5 mm
- Width
6.3 mm
- Height
76.4 mm
- Dim
(W x H x D) 6.3 x 76.4 x 88.5 mm
- Content
1 pc(s)
- Nominal current
6 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3787381 ABB CR-S024VADC1CRGS Interface relay 24 V AC, 24 V DC 1 change-over 1 pc(s)
Description
As an interface, interface relays connect the electronic control level, for example PLC, to the level of sensors/actuators. Here they take over various functions: Switching of direct or alternating current loads with different ohmic, inductive and capacitive proportions, switching in the voltage range from a few mV to 250 V, switching in the current strength range from a few mA to 6 A, amplification of weak control signals, potential separation of control and load circuits as well as signal multiplication. The CR-S series features 5 different coil voltage ranges with 1 changeover contacts, either standard or hard gold-plated. Two versions are available: Complete variants or freely selectable socket and plug-in relays.
