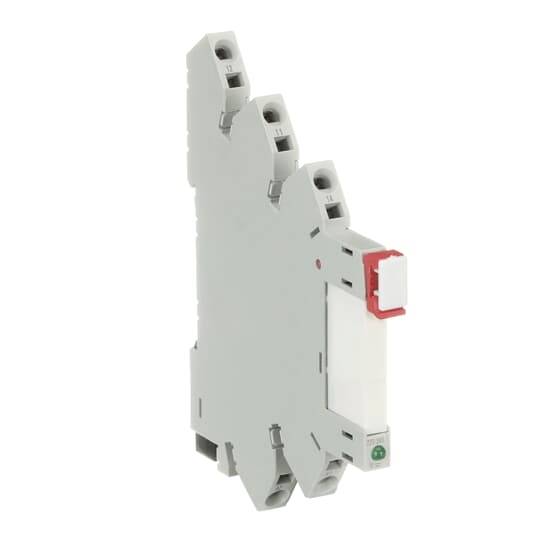

ABB CR-S230VADC1CRZ Interface relay 230 V AC, 230 V DC 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Product type
Interface relay
Contact type
1 change-over
Nominal voltage
230 V AC
230 V DC
Type
CR-S230VADC1CRZ
Connection
Spring-loaded connector
Technical specifications
- Product type
Interface relay
- Type
CR-S230VADC1CRZ
- Connection
Spring-loaded connector
- Contact type
1 change-over
- Contact material
AgSnO2
- Nominal voltage
230 V AC
230 V DC
IP20
Relay protection type RT I
- Depth
94.7 mm
- Width
6.2 mm
- Height
76.6 mm
- Dim
(W x H x D) 6.2 x 76.6 x 94.7 mm
- Content
1 pc(s)
- Weight
320.00
- Nominal current
6 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3787380 ABB CR-S230VADC1CRZ Interface relay 230 V AC, 230 V DC 1 change-over 1 pc(s)
Description
As an interface, interface relays connect the electronic control level, for example PLC, to the level of sensors/actuators. Here they take over various functions: Switching of direct or alternating current loads with different ohmic, inductive and capacitive proportions, switching in the voltage range from a few mV to 250 V, switching in the current strength range from a few mA to 6 A, amplification of weak control signals, potential separation of control and load circuits as well as signal multiplication. The CR-S series features 5 different coil voltage ranges with 1 changeover contacts, either standard or hard gold-plated. Two versions are available: Complete variants or freely selectable socket and plug-in relays.
