Name: ABB CT1M-10 1250 2CSG280705R1000 Inserted current transformer Primary current 1250 A Secondary current 5 A DIN rail moun
Brand: ABB
SKU: 3783611

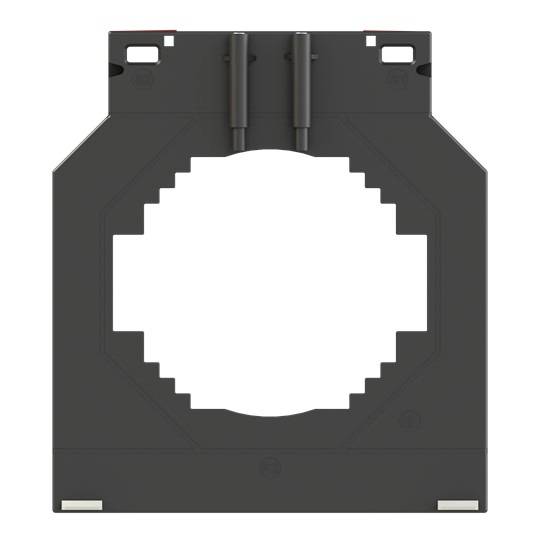

Black square plastic panel with a large circular cutout and mounting holes, likely an adapter or holder for a device or sensor.

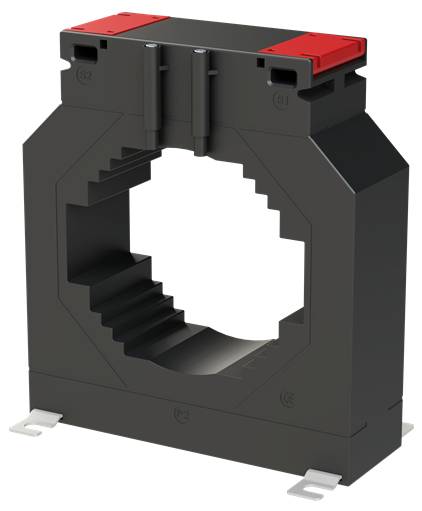

Black split-core current transformer with red top latches and mounting tabs, shown isolated on white background.

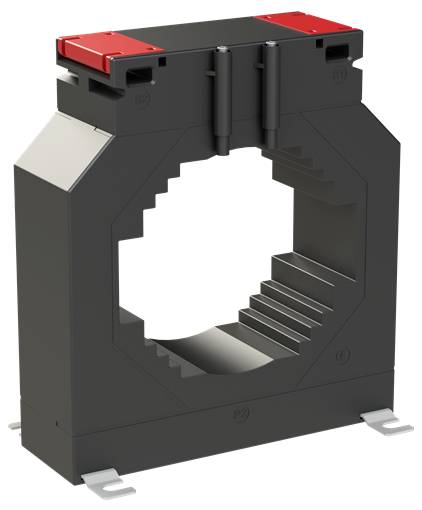

Black current transformer with a large central opening, red top cover, and metal mounting tabs on a white background.

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

THROUGH-HOLE CURRENT TRANSFORMER 1250/5A, 15VA CT1M-10 1250

Input current (current) 1250 A
Output current 5 A

Technical specifications

Product type: Inserted current transformer

Fitting type: DIN rail mount

Primary current: 1250 A

Secondary current: 5 A

Type: CT1M-10 1250

Output current: 5 A

Input current: 1250 A

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3783611 ABB CT1M-10 1250 2CSG280705R1000 Inserted current transformer Primary current 1250 A Secondary current 5 A DIN rail moun

Description

The CT1M series single-phase through current transformers convert primary currents from 50 A 6000 A to a secondary current of 5 A. They are designed for use in main and sub-distributions for horizontal and vertical busbars and have a low nominal power and accuracy classes from 0.5. The CT1M series meets the requirements of IEC 61869-2 and thus ensures the highest quality and reliability. The compact housing, classified according to UL94V-0, enables a safe mounting on the DIN rail in combination with the matching top-hat rail adapter for the CT1M-2 to 7 series.

This text is machine translated.
