Name: ABB CT1M-10 1500 2CSG280645R1000 Inserted current transformer Primary current 1500 A Secondary current 5 A DIN rail moun
Brand: ABB
SKU: 3783623

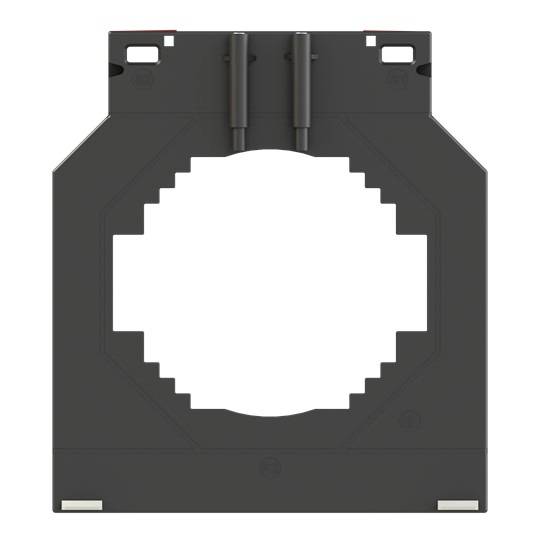

Dark gray square plastic panel with a large circular cutout and mounting tabs, likely an electrical or hardware component.

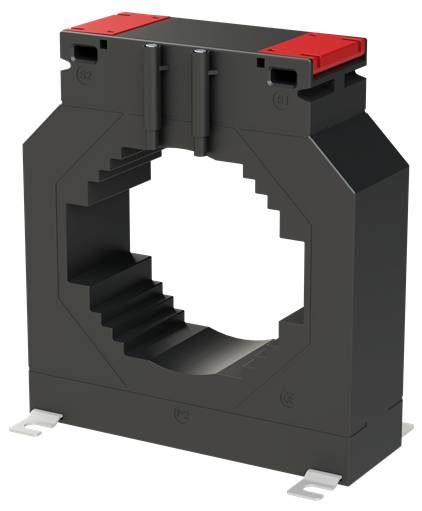

Black rectangular current transformer with a large central opening, red top covers, and metal mounting tabs on a white background.

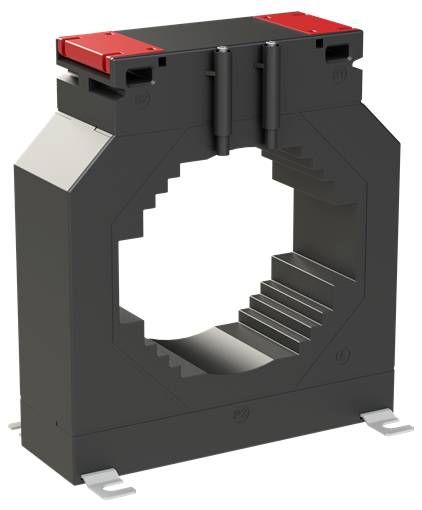

Black split-core electrical current transformer with red top cover and mounting tabs on white background<br>

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

THROUGH-HOLE CURRENT TRANSFORMER 1500/5A, 20VA CT1M-10 1500

Input current (current) 1500 A
Output current 5 A

Technical specifications

Product type: Inserted current transformer

Fitting type: DIN rail mount

Primary current: 1500 A

Secondary current: 5 A

Type: CT1M-10 1500

Output current: 5 A

Input current: 1500 A

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3783623 ABB CT1M-10 1500 2CSG280645R1000 Inserted current transformer Primary current 1500 A Secondary current 5 A DIN rail moun

Description

The CT1M series single-phase through current transformers convert primary currents from 50 A 6000 A to a secondary current of 5 A. They are designed for use in main and sub-distributions for horizontal and vertical busbars and have a low nominal power and accuracy classes from 0.5. The CT1M series meets the requirements of IEC 61869-2 and thus ensures the highest quality and reliability. The compact housing, classified according to UL94V-0, enables a safe mounting on the DIN rail in combination with the matching top-hat rail adapter for the CT1M-2 to 7 series.
