Buy ABB CT1M-2 100 2CSG280255R1000 Inserted current transformer Primary current 100 A Secondary current 5 A DIN rail mount 1

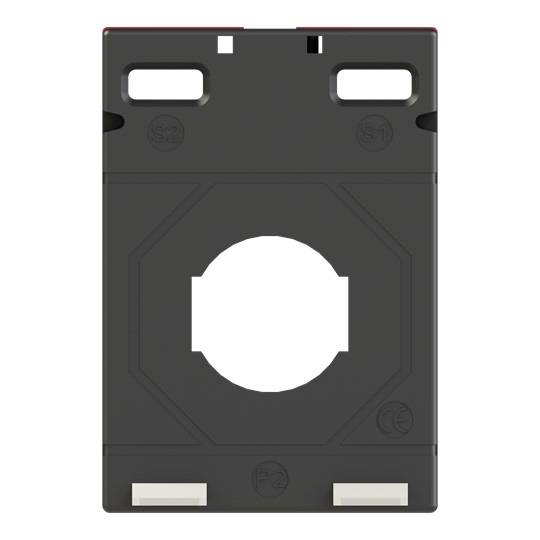

Black rectangular electrical component with two top slots, two bottom terminals, and a large central circular opening.

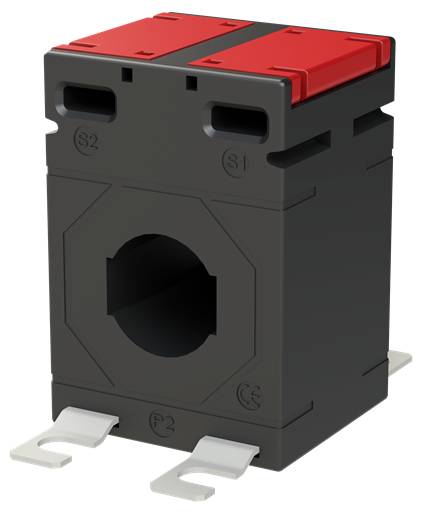

Black modular electrical current transformer with red top cover and mounting tabs, shown on a white background.

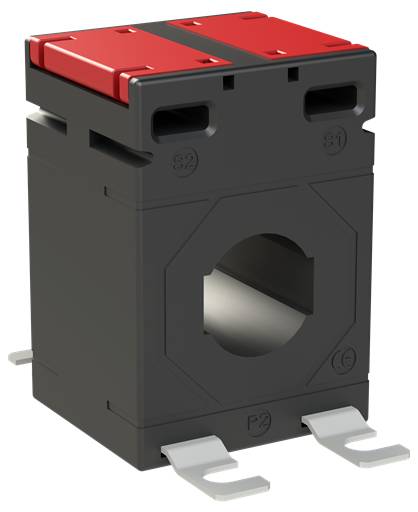

3D rendering of a black current transformer with a red top cover and a large central circular opening, shown isolated on a white background.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

THROUGH-HOLE CURRENT TRANSFORMER 100/5A, 2.5VA CT1M-2 100

Input current (current) 100 A
Output current 5 A

Technical specifications

Product type: Inserted current transformer

Fitting type: DIN rail mount

Primary current: 100 A

Secondary current: 5 A

Type: CT1M-2 100

Output current: 5 A

Input current: 100 A

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3783700 ABB CT1M-2 100 2CSG280255R1000 Inserted current transformer Primary current 100 A Secondary current 5 A DIN rail mount 1

Description

The CT1M series single-phase through current transformers convert primary currents from 50 A 6000 A to a secondary current of 5 A. They are designed for use in main and sub-distributions for horizontal and vertical busbars and have a low nominal power and accuracy classes from 0.5. The CT1M series meets the requirements of IEC 61869-2 and thus ensures the highest quality and reliability. The compact housing, classified according to UL94V-0, enables a safe mounting on the DIN rail in combination with the matching top-hat rail adapter for the CT1M-2 to 7 series.
