Buy ABB CT1M-2 250 2CSG280285R1000 Inserted current transformer Primary current 250 A Secondary current 5 A DIN rail mount 1

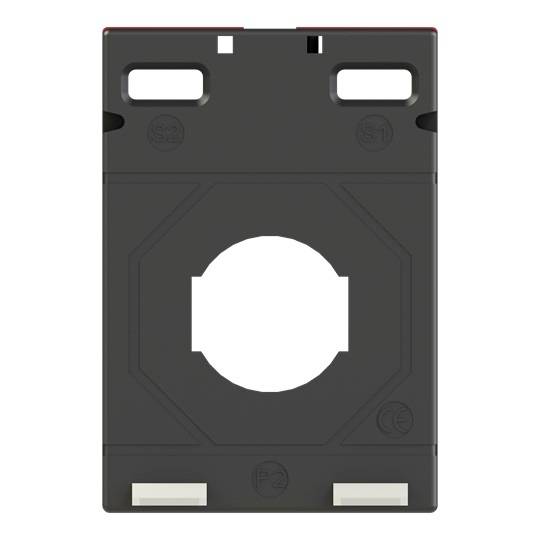

Black rectangular plastic electrical component with two top slots, a central circular opening, and bottom terminals, shown on a white background.

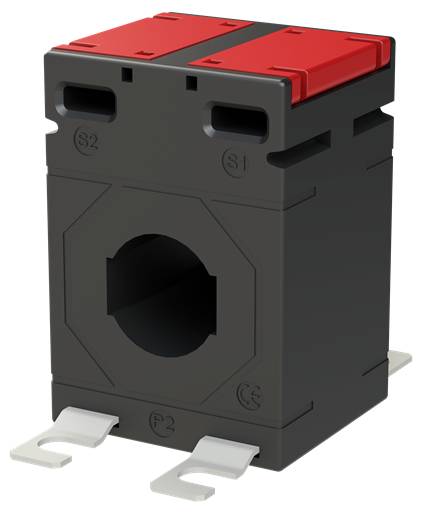

Close-up product image of a black and red electrical current transformer sensor with a central circular opening and metal mounting tabs.

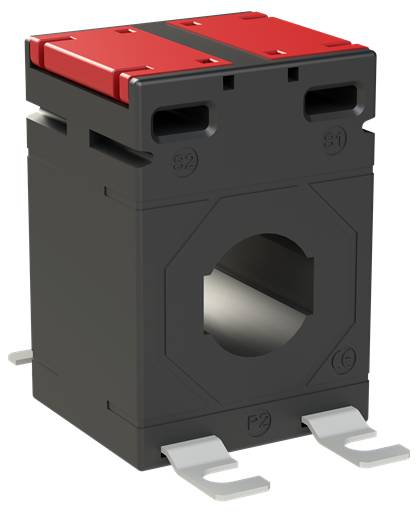

Black electrical current transformer with a red top and central circular opening, shown in three-quarter view on a white background.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

THROUGH-HOLE CURRENT TRANSFORMER 250/5A, 5VA CT1M-2 250

Input current (current) 250 A
Output current 5 A

Technical specifications

Product type: Inserted current transformer

Fitting type: DIN rail mount

Primary current: 250 A

Secondary current: 5 A

Type: CT1M-2 250

Output current: 5 A

Input current: 250 A

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3783694 ABB CT1M-2 250 2CSG280285R1000 Inserted current transformer Primary current 250 A Secondary current 5 A DIN rail mount 1

Description

The CT1M series single-phase through current transformers convert primary currents from 50 A 6000 A to a secondary current of 5 A. They are designed for use in main and sub-distributions for horizontal and vertical busbars and have a low nominal power and accuracy classes from 0.5. The CT1M series meets the requirements of IEC 61869-2 and thus ensures the highest quality and reliability. The compact housing, classified according to UL94V-0, enables a safe mounting on the DIN rail in combination with the matching top-hat rail adapter for the CT1M-2 to 7 series.

This text is machine translated.
