Buy ABB CT1M-2 400 2CSG280305R1000 Inserted current transformer Primary current 400 A Secondary current 5 A DIN rail mount 1

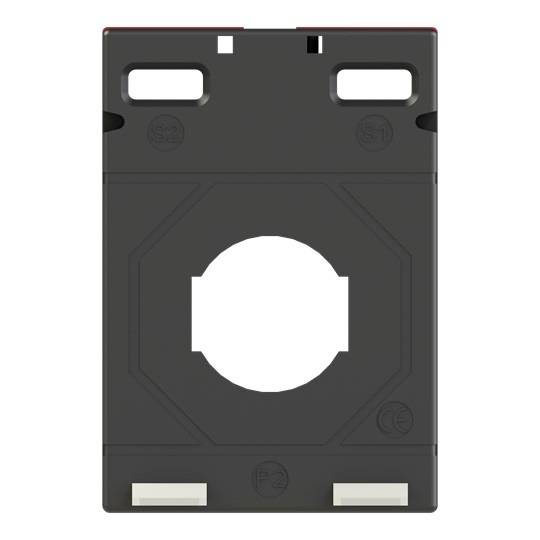

Black rectangular electrical device or panel with a central circular cutout and two top slots, shown front-facing on a white background.

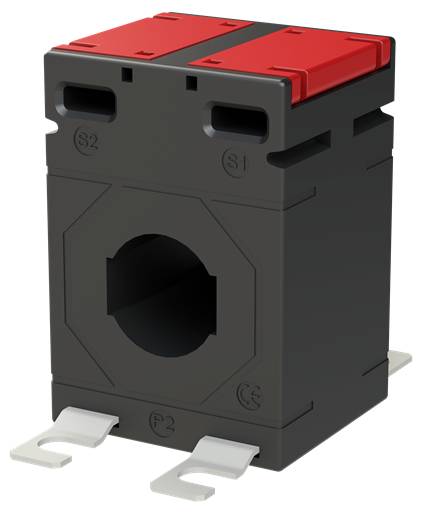

Black and red electrical current transformer with a central circular opening and screw terminals, shown in 3D on a white background.

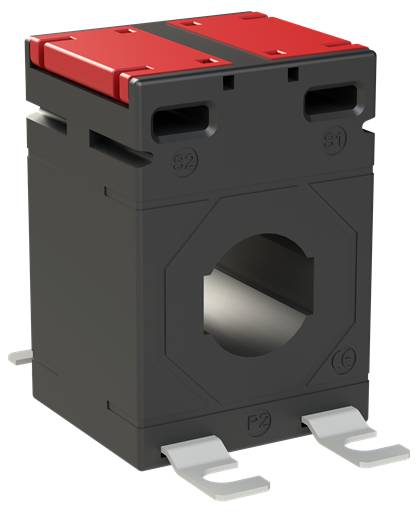

Black current transformer sensor with a red top and three silver mounting terminals, shown isolated on a white background.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

THROUGH-HOLE CURRENT TRANSFORMER 400/5A, 5VA CT1M-2 400

Input current (current) 400 A
Output current 5 A

Technical specifications

Product type: Inserted current transformer

Fitting type: DIN rail mount

Primary current: 400 A

Secondary current: 5 A

Type: CT1M-2 400

Output current: 5 A

Input current: 400 A

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3783690 ABB CT1M-2 400 2CSG280305R1000 Inserted current transformer Primary current 400 A Secondary current 5 A DIN rail mount 1

Description

The CT1M series single-phase through current transformers convert primary currents from 50 A 6000 A to a secondary current of 5 A. They are designed for use in main and sub-distributions for horizontal and vertical busbars and have a low nominal power and accuracy classes from 0.5. The CT1M series meets the requirements of IEC 61869-2 and thus ensures the highest quality and reliability. The compact housing, classified according to UL94V-0, enables a safe mounting on the DIN rail in combination with the matching top-hat rail adapter for the CT1M-2 to 7 series.

This text is machine translated.
