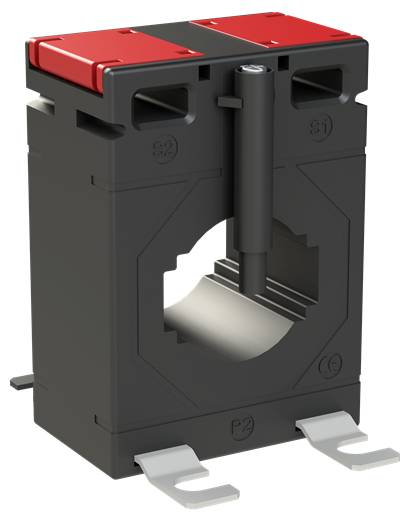

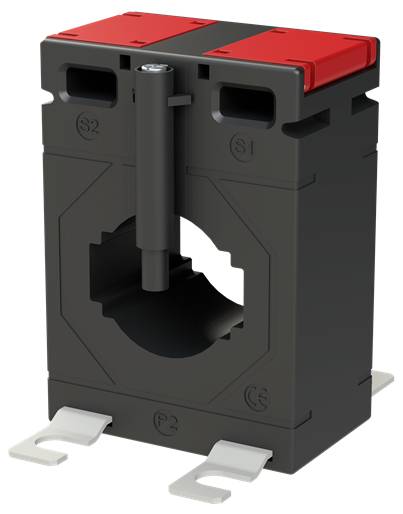

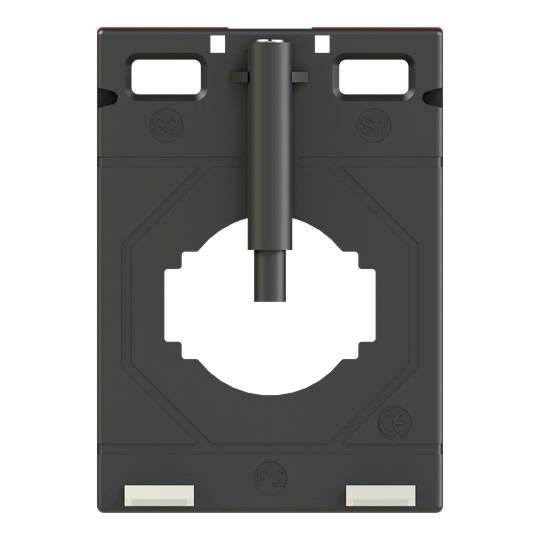

ABB CT1M-3 600 2CSG280345R1000 Inserted current transformer Primary current 600 A Secondary current 5 A DIN rail mount 1
EAN:
Part number:
Item no:
Highlights & Details
THROUGH-HOLE CURRENT TRANSFORMER 600/5A, 5VA CT1M-3 600
- Input current (current) 600 A
- Output current 5 A
Technical specifications
- Product type
Inserted current transformer
- Fitting type
DIN rail mount
- Primary current
600 A
- Secondary current
5 A
- Type
CT1M-3 600
- Output current
5 A
- Input current
600 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3783683 ABB CT1M-3 600 2CSG280345R1000 Inserted current transformer Primary current 600 A Secondary current 5 A DIN rail mount 1
Description
The CT1M series single-phase through current transformers convert primary currents from 50 A 6000 A to a secondary current of 5 A. They are designed for use in main and sub-distributions for horizontal and vertical busbars and have a low nominal power and accuracy classes from 0.5. The CT1M series meets the requirements of IEC 61869-2 and thus ensures the highest quality and reliability. The compact housing, classified according to UL94V-0, enables a safe mounting on the DIN rail in combination with the matching top-hat rail adapter for the CT1M-2 to 7 series.
