Buy ABB CT1M-6 2000 2CSG280505R1000 Inserted current transformer Primary current 2000 A Secondary current 5 A DIN rail mount

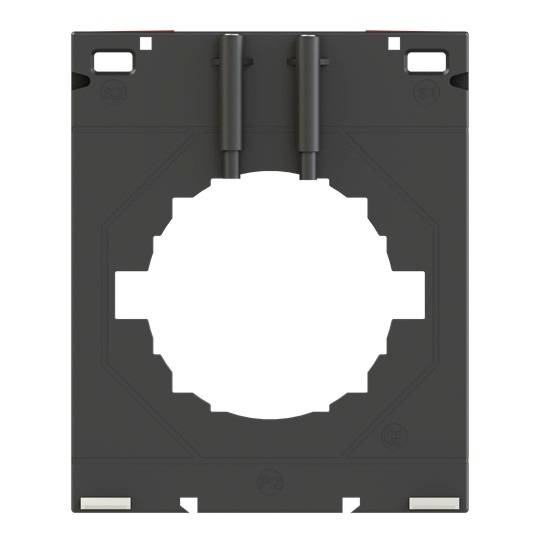

Black rectangular plastic mounting plate with a large circular cutout in the center and two vertical ridges at the top.

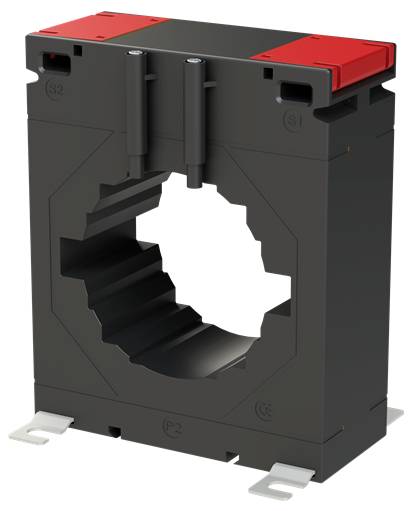

Black current transformer with a large central opening, red top cover, and mounting tabs, shown on a white background.

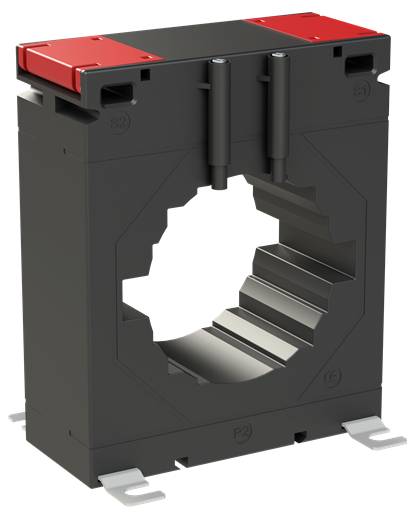

Black current transformer with red top cover and central circular opening, shown isolated on a white background.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

THROUGH-HOLE CURRENT TRANSFORMER 2000/5A, 20VA CT1M-6 2000

Input current (current) 2000 A
Output current 5 A

Technical specifications

Product type: Inserted current transformer

Fitting type: DIN rail mount

Primary current: 2000 A

Secondary current: 5 A

Type: CT1M-6 2000

Output current: 5 A

Input current: 2000 A

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3783651 ABB CT1M-6 2000 2CSG280505R1000 Inserted current transformer Primary current 2000 A Secondary current 5 A DIN rail mount

Description

The CT1M series single-phase through current transformers convert primary currents from 50 A 6000 A to a secondary current of 5 A. They are designed for use in main and sub-distributions for horizontal and vertical busbars and have a low nominal power and accuracy classes from 0.5. The CT1M series meets the requirements of IEC 61869-2 and thus ensures the highest quality and reliability. The compact housing, classified according to UL94V-0, enables a safe mounting on the DIN rail in combination with the matching top-hat rail adapter for the CT1M-2 to 7 series.

This text is machine translated.
