Name: ABB CT1M-S-120 800 2CSG280825R1000 Cable current transformer Primary current 800 A Secondary current 5 A DIN rail mount
Brand: ABB
SKU: 3783587

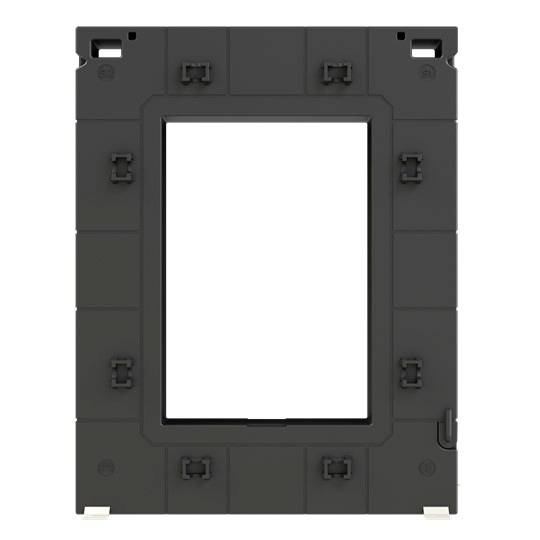

Black plastic mounting frame with a large rectangular center opening and multiple clip points, shown isolated on a white background.

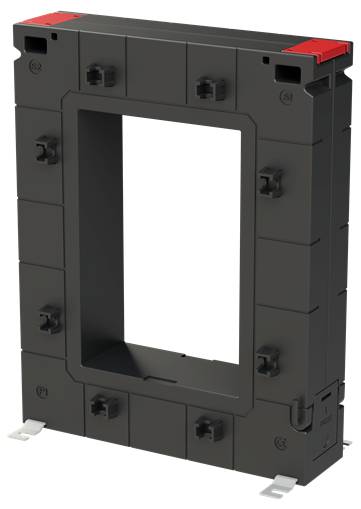

Black rectangular electrical current transformer with an open center window and red top corners, shown in 3D on a white background.

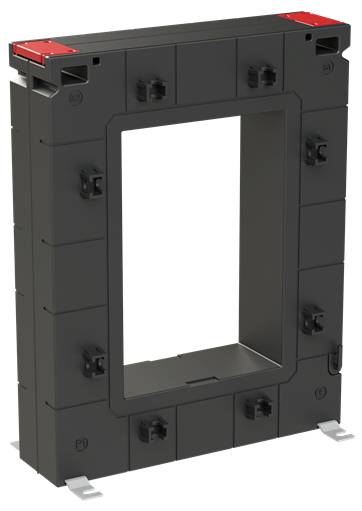

Black rectangular electrical current transformer with a large center opening, mounting tabs, and red top cover accents on a white background.<br>

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Cable converting current transformer S-800/5A, 7.5VA, K0.5 CT1M-S-120 800

Input current (current) 800 A
Output current 5 A

Technical specifications

Product type: Cable current transformer

Fitting type: DIN rail mount

Primary current: 800 A

Secondary current: 5 A

Type: CT1M-S-120 800

Output current: 5 A

Input current: 800 A

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3783587 ABB CT1M-S-120 800 2CSG280825R1000 Cable current transformer Primary current 800 A Secondary current 5 A DIN rail mount

Description

The single-phase cable conversion transformer of the CT1M series is used to convert primary currents from 50 A 6000 A to a secondary current of 5 A. They are designed for use in main and sub-distributions for horizontal as well as vertical busbars and have a low nominal output and accuracy classes starting from 0.5.1. The CT1M series meets the requirements of IEC 61869-2 and thus ensures the highest quality and reliability. The compact housing, classified according to UL94V-0, enables a safe mounting on the DIN rail in combination with the matching top-hat rail adapter for the CT1M-2 to 7 series.
