Name: ABB CT1M-S-30 250 2CSG280745R1000 Cable current transformer Primary current 250 A Secondary current 5 A DIN rail mount 1
Brand: ABB
SKU: 3783603

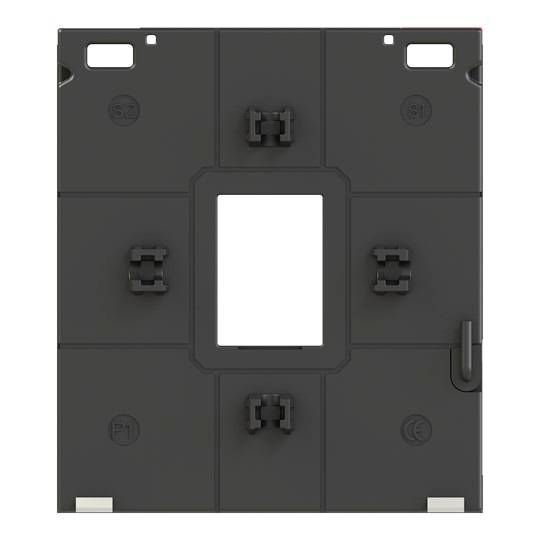

Black modular mounting panel with a central rectangular cutout, corner slots, and multiple latch clips, shown front view.<br>

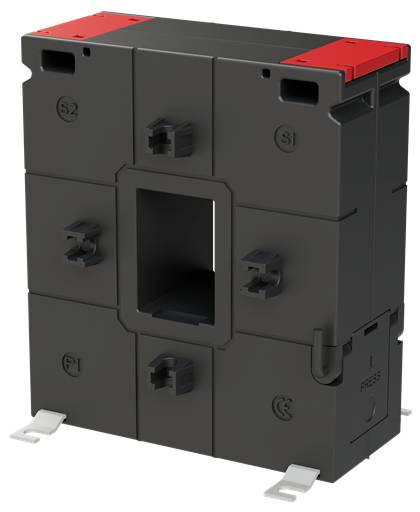

Industrial electrical current transformer with a central window opening, black casing, red top corners, and mounting feet.<br>

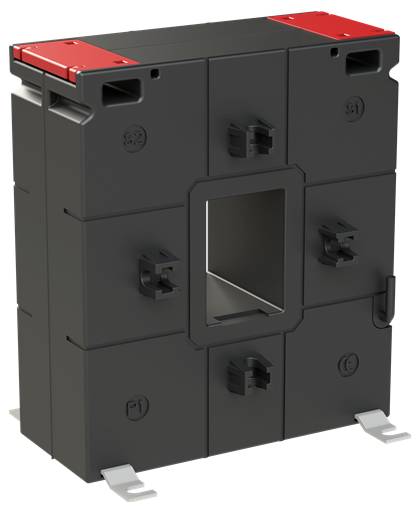

Black electrical current transformer with red top accents and a square center opening, shown on a white background.

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Cable converting current transformer S-250/5A, 3.75VA, Cl. 1 CT1M-S-30 250

Input current (current) 250 A
Output current 5 A

Technical specifications

Product type: Cable current transformer

Fitting type: DIN rail mount

Primary current: 250 A

Secondary current: 5 A

Type: CT1M-S-30 250

Output current: 5 A

Input current: 250 A

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3783603 ABB CT1M-S-30 250 2CSG280745R1000 Cable current transformer Primary current 250 A Secondary current 5 A DIN rail mount 1

Description

The single-phase cable conversion transformer of the CT1M series is used to convert primary currents from 50 A 6000 A to a secondary current of 5 A. They are designed for use in main and sub-distributions for horizontal as well as vertical busbars and have a low nominal output and accuracy classes starting from 0.5.1. The CT1M series meets the requirements of IEC 61869-2 and thus ensures the highest quality and reliability. The compact housing, classified according to UL94V-0, enables a safe mounting on the DIN rail in combination with the matching top-hat rail adapter for the CT1M-2 to 7 series.

This text is machine translated.
