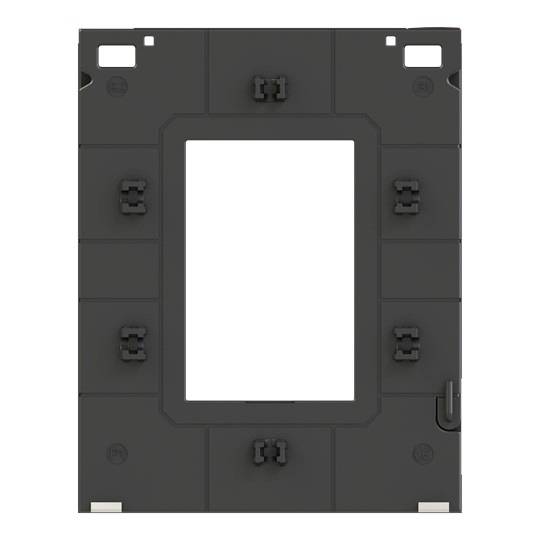

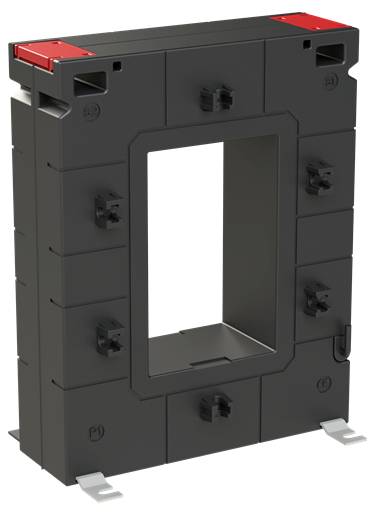

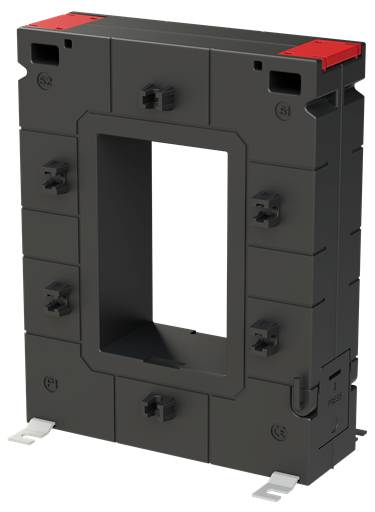

ABB CT1M-S-80 400 2CSG280775R1000 Cable current transformer Primary current 400 A Secondary current 5 A DIN rail mount 1
EAN:
Part number:
Item no:
Highlights & Details
Cable converting current transformer S-400/5A, 2.5VA CT1M-S-80 400
- Input current (current) 400 A
- Output current 5 A
Technical specifications
- Product type
Cable current transformer
- Fitting type
DIN rail mount
- Primary current
400 A
- Secondary current
5 A
- Type
CT1M-S-80 400
- Output current
5 A
- Input current
400 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3783597 ABB CT1M-S-80 400 2CSG280775R1000 Cable current transformer Primary current 400 A Secondary current 5 A DIN rail mount 1
Description
The single-phase cable conversion transformer of the CT1M series is used to convert primary currents from 50 A 6000 A to a secondary current of 5 A. They are designed for use in main and sub-distributions for horizontal as well as vertical busbars and have a low nominal output and accuracy classes starting from 0.5.1. The CT1M series meets the requirements of IEC 61869-2 and thus ensures the highest quality and reliability. The compact housing, classified according to UL94V-0, enables a safe mounting on the DIN rail in combination with the matching top-hat rail adapter for the CT1M-2 to 7 series.
