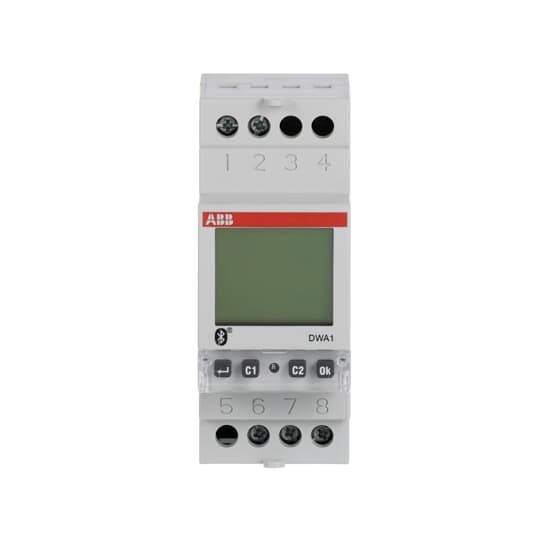

ABB DWA1 Timer digital
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Timer
- Channels
1-channel
- Type
digital
- Type
DWA1
- Manufacturer part #
2CSM222511R1000
- Dim
(L x W x H) 87 x 35 x 65 mm
- Memory slots
120
- Astro function
Yes
- Data key
Yes (optional)
- Display type
Backlit
- Display backlighting
Yes
- Min. power reserve
5 years
- Impulse
Yes
- Width
35 mm
- Height
65 mm
- Length
87 mm
- Features
Bluetooth programming
- Switching cycle
24h mode
- Cycle
Yes
- Weight
0
DIN rail
35 mm
65 mm
87 mm
1
400
1
FALSE
TRUE
FALSE
Change-over contact (NO/NC)
FALSE
2
FALSE
TRUE
TRUE
TRUE
TRUE
TRUE
TRUE
TRUE
TRUE
TRUE
TRUE
AC
TRUE
TRUE
FALSE
TRUE
5
0
1 min
1 min
16 A
TRUE
IP20
0.5 s
TRUE
FALSE
500 W
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3103174 ABB DWA1 Timer digital
User & Safety Instructions
User & Safety Instructions 3103174 ABB DWA1 Timer digital
Description
Digital astro timer with built-in Bluetooth interface for app programming with smartphone or tablet via APP "DBT timer". Potential-free changeover contacts for time-dependent control of equipment. Programming of day, week, Astro, holiday, impulse, Cycle and random programs with up to 120 memory slots. High security through lead-sealable transparent cover and access protection via PIN code. LED load up to 500 W switchable. Background light display and automatic conversion from summer/winter time.
