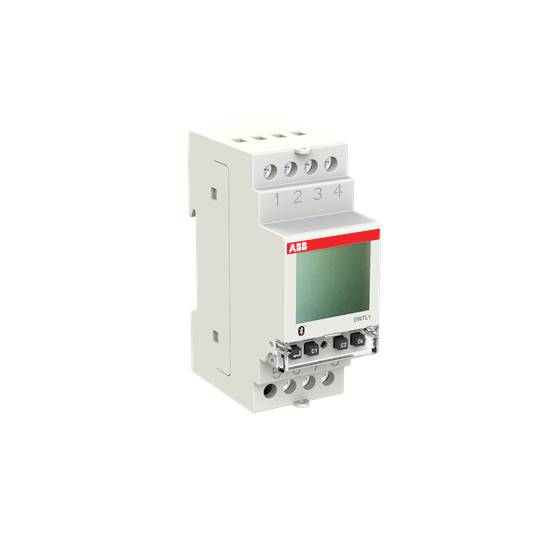

ABB DWTL1 Timer digital
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Timer
- Channels
1-channel
- Type
digital
- Type
DWTL1
- Manufacturer part #
2CSM222491R1000
- Dim
(L x W x H) 87 x 35 x 65 mm
- Memory slots
900
- Astro function
Yes
- Display type
Backlit
- Display backlighting
Yes
- External input
Yes
- Min. power reserve
5 years
- Impulse
Yes
- Width
35 mm
- Height
65 mm
- Length
87 mm
- Features
Bluetooth programming
- Switching cycle
7 day mode
- Cycle
Yes
- Weight
0
DIN rail
35 mm
65 mm
87 mm
1
400
1
FALSE
TRUE
FALSE
Change-over contact (NO/NC)
FALSE
2
FALSE
TRUE
TRUE
TRUE
TRUE
TRUE
TRUE
TRUE
TRUE
TRUE
TRUE
AC
TRUE
TRUE
FALSE
TRUE
5
0
1 min
1 min
16 A
TRUE
IP20
0.5 s
TRUE
FALSE
500 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3103172 ABB DWTL1 Timer digital
User & Safety Instructions
User & Safety Instructions 3103172 ABB DWTL1 Timer digital
Description
Digital weekly timer with integrated Bluetooth interface and light sensor input for app programming with smartphone or tablet via APP "DBT timer". Light sensor for wall mounting inclusive Potential-free changeover contacts for time-dependent control of equipment. Programming of daily, weekly, holiday, pulse, cycle and random programs with up to 900 memory slots. High security through lead-sealable transparent cover and access protection via PIN code. LED load up to 500 W switchable. Background light display and automatic conversion from summer/winter time.
