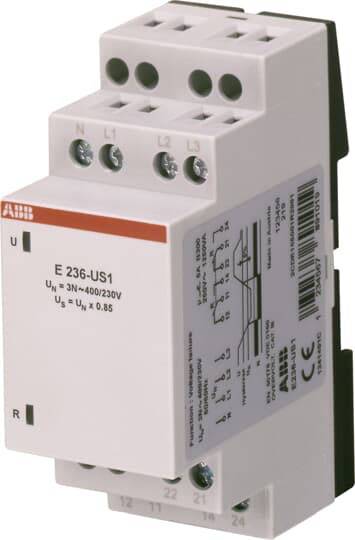

ABB E236-US1 2CDE165000R2001 Monitoring relay
EAN:
Part number:
Item no:
Product type
Monitoring relay
Operating voltage
250 V
Type
E236-US1
Probe inputs
3N. 400/230 V
Weight
0.10
Datasheet (PDF)
Technical specifications
- Type
E236-US1
- Product type
Monitoring relay
- Probe inputs
3N. 400/230 V
- Operating voltage
250 V
- Weight
0.10
- Height
87 mm
- Factory colour
White
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2323775 ABB E236-US1 2CDE165000R2001 Monitoring relay
User & Safety Instructions
User & Safety Instructions 2323775 ABB E236-US1 2CDE165000R2001 Monitoring relay
Description
The green LED lights up when the supply voltage is applied. If each phase voltage exceeds 195 V (US1) or exceeds the preset threshold value (US2) with respect to the neutral conductor including hysteresis when the device is switched on, the relay immediately switches to the working position. The yellow LED lights up. If at least one phase voltage falls below the threshold, the relay returns to its normal position and the yellow LED goes out. If phase 2 also fails, the green LED also goes out. The neutral conductor must be connected!
