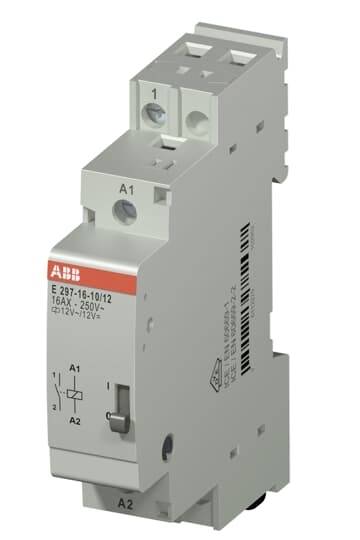

ABB E297-16-10/12 Relay Switching current (max.): 16 A 1 maker Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Relay
Contact type
1 maker
Switching current (max.)
16 A
Type
E297-16-10/12
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Relay
- Type
E297-16-10/12
- Max. pick-up voltage
250 V AC
- Contact type
1 maker
- Switching current (max.)
16 A
- Max. switching capacity
1800 VA
- Features
Low noise
- Width
18 mm
- Content
1 pc(s)
DIN rail
Mechanical
62 mm
16 A
1
AC
AC
16 A
3000 W
3000 VA
2500 VA
2500 VA
0
1
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3112646 ABB E297-16-10/12 Relay Switching current (max.): 16 A 1 maker Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3112646 ABB E297-16-10/12 Relay Switching current (max.): 16 A 1 maker Piece 1 pc(s)
Description
Installation relays E297 are electro magnetically activated small contactors with 18mm width (1 module unit). These installation relays can be used to create a reliable consumer control. As a rule, the installation relays are connected to a control switch (permanent contact) where lighting, air conditioning, a fan or
similar is to be controlled. The device remains in the "on" position as long as the control voltage is applied to the coil. If the control voltage is interrupted, the installation relay always returns to the rest position (OFF position). Thanks to the optimal switching capacity, they are also suitable for applications in industrial environments and in situations where it is necessary to control higher performance
Consumers (such as several light groups).
By using an optimized coil (low power loss = lower operating temperature) a trouble-free and safe use in the electric distributor is ensured. The low-noise switching noise and the hum-free magnet system justify use in public buildings and in private homes. The installation relays can be controlled by common AC / DC control voltages depending on the type and are designed for a rated current of 16 A.
This text is machine translated.
similar is to be controlled. The device remains in the "on" position as long as the control voltage is applied to the coil. If the control voltage is interrupted, the installation relay always returns to the rest position (OFF position). Thanks to the optimal switching capacity, they are also suitable for applications in industrial environments and in situations where it is necessary to control higher performance
Consumers (such as several light groups).
By using an optimized coil (low power loss = lower operating temperature) a trouble-free and safe use in the electric distributor is ensured. The low-noise switching noise and the hum-free magnet system justify use in public buildings and in private homes. The installation relays can be controlled by common AC / DC control voltages depending on the type and are designed for a rated current of 16 A.
