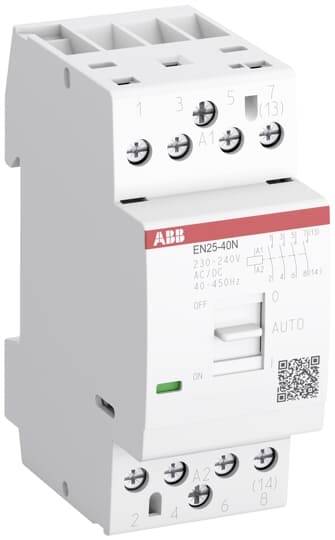

ABB EN25-40N-06 Remote switch 4 makers 220 V, 400 V + auxiliary contact 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
No. of pins
4-pin
Nominal voltage
220 V
400 V
Type
EN25-40N-06
Contact type
4 makers
Datasheet (PDF)
Technical specifications
- Product type
Remote switch
- Type
EN25-40N-06
- No. of pins
4-pin
- Contact type
4 makers
- Auxiliary contact type
4 makers
- Nominal voltage
220 V
400 V
- Switching voltage (max.)
400 V DC/AC
- Permanent current (max.)
25 A
- Features
+ auxiliary contact
- Mounting type
DIN rail
IP20
- Width
50 mm
- Height
100 mm
- Depth
150 mm
- Dim
(W x H x D) 50 x 100 x 150 mm
- Content
1 pc(s)
- Weight
1000 g
58 mm
220-400 V
2
7
TRUE
AC/DC
AC/DC
IP20
25 A
TRUE
0
4
230-240 V
TRUE
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3103858 ABB EN25-40N-06 Remote switch 4 makers 220 V, 400 V + auxiliary contact 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3103858 ABB EN25-40N-06 Remote switch 4 makers 220 V, 400 V + auxiliary contact 1 pc(s)
Description
4-pole contactors EN25..N with 36 mm width controls 3-phase loads up to 25 A and are available in different contact positions and coil voltages. They control electrical heaters, water heaters, motors for pumps, ventilation and other drives as well as lighting. Through an integrated coil circuit they work with AC as well as with DC control voltages. The devices are therefore absolutely free of humming and low while switching.
EN25..N have an integrated switch for selecting between three operating modes: Manually switched off (even when the control signal is present), automatic operation (normal contactor function) and manually switched on with return to automatic mode as soon as the coil is supplied with power the next time. This offers numerous advantages: For example, a function test of the load circuit can be carried out even without control signal during commissioning, and the load circuit can be switched off quickly and easily at any time if a control signal is available.
An auxiliary switch that can be mounted on the left side as an accessory, as well as sealing caps and a spacer insert complete the range.
EN25..N have installation design and meet the household standard EN61095 and are therefore particularly suitable for distributor installation.
This text is machine translated.
EN25..N have an integrated switch for selecting between three operating modes: Manually switched off (even when the control signal is present), automatic operation (normal contactor function) and manually switched on with return to automatic mode as soon as the coil is supplied with power the next time. This offers numerous advantages: For example, a function test of the load circuit can be carried out even without control signal during commissioning, and the load circuit can be switched off quickly and easily at any time if a control signal is available.
An auxiliary switch that can be mounted on the left side as an accessory, as well as sealing caps and a spacer insert complete the range.
EN25..N have installation design and meet the household standard EN61095 and are therefore particularly suitable for distributor installation.
This text is machine translated.
