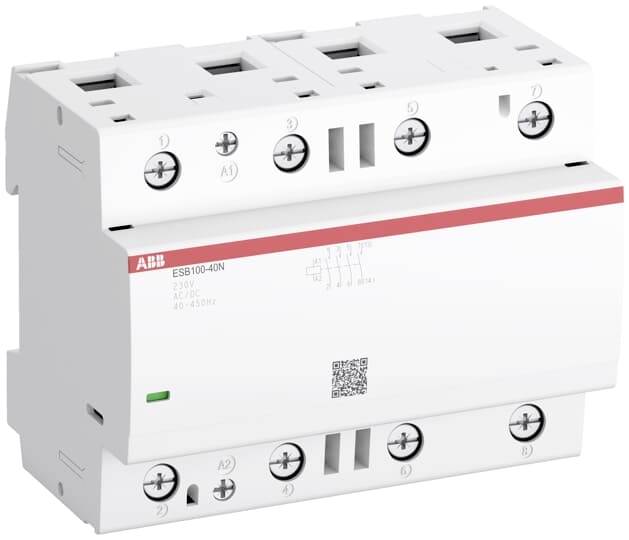

ABB ESB100-40N-06 Remote switch 4 makers 220 V, 400 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Depth
150 mm
- Height
100 mm
- Width
50 mm
IP20
- Contact type
4 makers
- Nominal voltage
220 V
400 V
- Permanent current (max.)
100 A
- Weight
1000 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3103889 ABB ESB100-40N-06 Remote switch 4 makers 220 V, 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3103889 ABB ESB100-40N-06 Remote switch 4 makers 220 V, 400 V 1 pc(s)
Description
4-pole contactors ESB100-40N with 108 mm width controls 3-phase loads up to 100 A and are available in different coil voltages. You can switch electric heaters, water heaters and also lights. Through an integrated coil circuit they work with AC as well as with DC control voltages. The devices are therefore absolutely free of humming and low while switching. They can be placed side by side without a distance.
The auxiliary switch can be attached on the left side as an accessory to complement the product range.
ESB100-40N have installation design and meet the household standard EN61095. They are therefore particularly suited for distributor installation.
