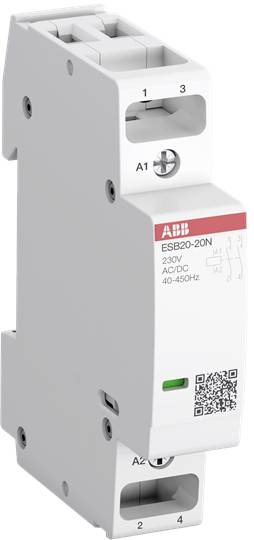

ABB ESB20-20N-07 Remote switch 2 makers 220 V, 250 V 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
No. of pins
2-pin
Nominal voltage
220 V
250 V
Type
ESB20-20N-07
Contact type
2 makers
Datasheet (PDF)
Technical specifications
- Product type
Remote switch
- Type
ESB20-20N-07
- No. of pins
2-pin
- Contact type
2 makers
- Auxiliary contact type
2 makers
- Nominal voltage
220 V
250 V
- Permanent current (max.)
20 A
IP20
- Width
18 mm
- Content
1 pc(s)
58 mm
220-250 V
1
7
FALSE
AC/DC
AC/DC
IP20
20 A
TRUE
0
2
400-400 V
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3104922 ABB ESB20-20N-07 Remote switch 2 makers 220 V, 250 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3104922 ABB ESB20-20N-07 Remote switch 2 makers 220 V, 250 V 1 pc(s)
Description
2-pole contactor ESB20..N with 18 mm width controls 1-phase loads up to 20 A and is available in different contact assignments and coil voltages. They control electrical heaters, water heaters, motors for pumps, ventilation and other drives as well as lighting. Through an integrated coil circuit they work with AC as well as with DC control voltages. The devices are therefore absolutely free of humming and low while switching. They can be placed side by side without a distance.
The auxiliary switch can be attached on the left side as an accessory to complement the product range.
ESB20..N have installation design and meet the household standard EN61095. They are therefore particularly suited for distributor installation.
