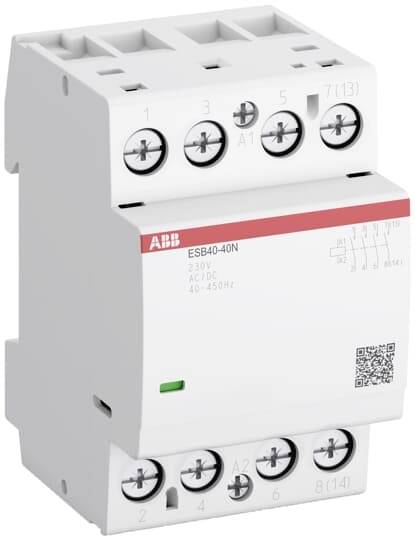

ABB ESB40-40N-06 Remote switch 4 makers 220 V, 400 V 1 pc(s)
Part number:
Item no:
Product type
Remote switch
Nominal voltage
220 V
400 V
Type
ESB40-40N-06
Contact type
4 makers
Permanent current (max.)
40 A
Datasheet (PDF)
Technical specifications
- Product type
Remote switch
- Type
ESB40-40N-06
- Contact type
4 makers
- Nominal voltage
220 V
400 V
- Permanent current (max.)
40 A
IP20
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3103866 ABB ESB40-40N-06 Remote switch 4 makers 220 V, 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3103866 ABB ESB40-40N-06 Remote switch 4 makers 220 V, 400 V 1 pc(s)
Description
4-pole contactors ESB40..N with 54 mm width controls 3-phase loads up to 40 A (NC contacts up to 30 A) and are available in different contact positions and coil voltages. They control electrical heaters, water heaters, motors for pumps, ventilation and other drives as well as lighting. Through an integrated coil circuit they work with AC as well as with DC control voltages. The devices are therefore absolutely free of humming and low while switching.
An auxiliary switch that can be mounted on the left side as an accessory, as well as sealing caps and a spacer insert complete the range.
ESB40..N have installation design and meet the household standard EN61095 and are therefore particularly suitable for distributor installation.
This text is machine translated.
An auxiliary switch that can be mounted on the left side as an accessory, as well as sealing caps and a spacer insert complete the range.
ESB40..N have installation design and meet the household standard EN61095 and are therefore particularly suitable for distributor installation.
