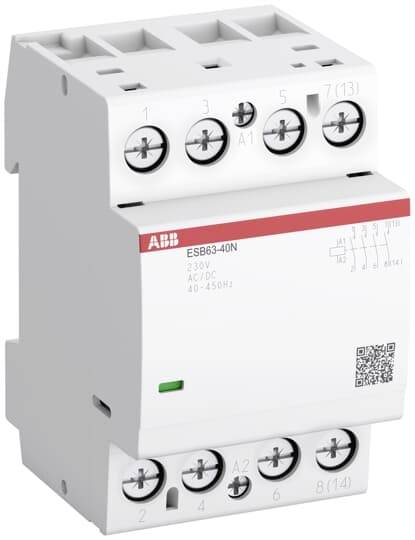

ABB ESB63-40N-06 M0640 Remote switch 4 makers 63 A 4 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
No. of pins
4-pin
Current load
63 A
Type
ESB63-40N-06 M0640
Contact type
4 makers
Technical specifications
- Product type
Remote switch
- Type
ESB63-40N-06 M0640
- No. of pins
4-pin
- Contact type
4 makers
- Auxiliary contact type
4 makers
- Control voltage (min.)
230 V AC
230 V DC
- Control voltage (max.)
230 V AC
230 V DC
- Control voltage range
230, 230 - 230, 230 V AC, V DC
- Switching voltage (min.)
220 V AC
220 V DC
- Switching voltage (max.)
400 V DC/AC
- Permanent current (max.)
63 A
- Current load
63 A
IP20
- Width
54 mm
- Content
4 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3783443 ABB ESB63-40N-06 M0640 Remote switch 4 makers 63 A 4 pc(s)
Description
4-pole contactors ESB63..N with 54 mm width controls 3-phase loads up to 63 A (NC contacts up to 30 A) and are available in different contact assignments and coil voltages. They control electrical heaters, water heaters, motors for pumps, ventilation and other drives as well as lighting. Through an integrated coil circuit they work with AC as well as with DC control voltages. The devices are therefore absolutely free of humming and low while switching. An auxiliary switch that can be mounted on the left side as an accessory, as well as sealing caps and a spacer insert complete the range. ESB63..N have installation design and meet the household standard EN61095, and are therefore particularly suitable for distributor installation.
