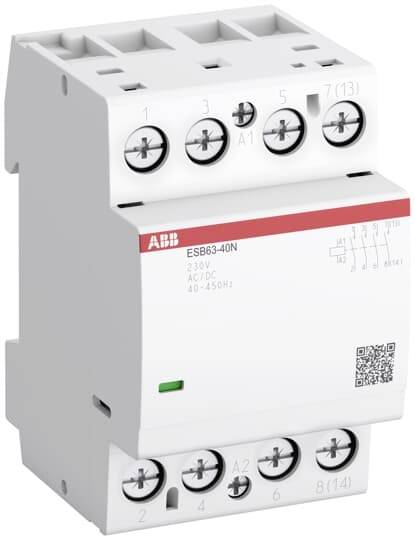

ABB ESB63-40N-06 Remote switch 4 makers 220 V, 400 V 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
Nominal voltage
220 V
400 V
Type
ESB63-40N-06
Contact type
4 makers
Auxiliary contact type
4 makers
Datasheet (PDF)
Technical specifications
- Product type
Remote switch
- Type
ESB63-40N-06
- Contact type
4 makers
- Auxiliary contact type
4 makers
- Nominal voltage
220 V
400 V
- Permanent current (max.)
63 A
IP20
- Width
395.0000 mm
- Height
280.0000 mm
- Depth
210.0000 mm
- Dim
(W x H x D) 395.0000 x 280.0000 x 210.0000 mm
- Content
1 pc(s)
- Weight
0.41
58 mm
220-400 V
3
7
FALSE
AC/DC
AC/DC
IP20
63 A
TRUE
0
4
230-230 V
TRUE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3103882 ABB ESB63-40N-06 Remote switch 4 makers 220 V, 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3103882 ABB ESB63-40N-06 Remote switch 4 makers 220 V, 400 V 1 pc(s)
Description
4-pole contactors ESB63..N with 54 mm width controls 3-phase loads up to 63 A (NC contacts up to 30 A) and are available in different contact assignments and coil voltages. They control electrical heaters, water heaters, motors for pumps, ventilation and other drives as well as lighting. Through an integrated coil circuit they work with AC as well as with DC control voltages. The devices are therefore absolutely free of humming and low while switching.
An auxiliary switch that can be mounted on the left side as an accessory, as well as sealing caps and a spacer insert complete the range.
ESB63..N have installation design and meet the household standard EN61095, and are therefore particularly suitable for distributor installation.
This text is machine translated.
An auxiliary switch that can be mounted on the left side as an accessory, as well as sealing caps and a spacer insert complete the range.
ESB63..N have installation design and meet the household standard EN61095, and are therefore particularly suitable for distributor installation.
