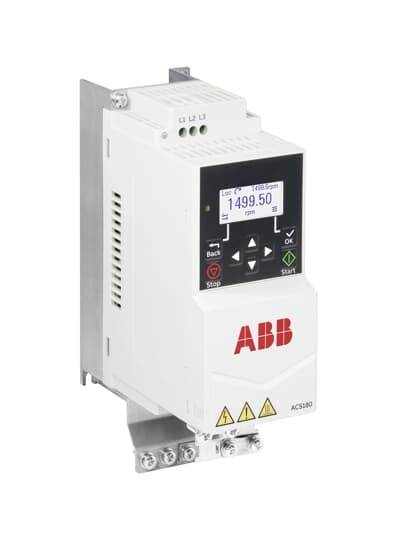

ABB Frequency inverter 0.55 kW
EAN:
Part number:
Item no:
Technical specifications
- Product type
Frequency inverter
- Output rating (max.)
0.55 kW
- Max. frequency
599 Hz
- Frequency range
599 Hz (max)
- Nominal current
1.8 A
- Depth
143 mm
- Height
209 mm
- Width
70 mm
IP20
- Type
3AXD50000716623
- Dim
(W x H x D) 70 x 209 x 143 mm
- Manufacturer part #
3AXD50000716623
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3784049 ABB Frequency inverter 0.55 kW
Description
ACS180 frequency converter for mechanical engineering for speed adjustment of asynchronous and permanent magnet motors With icon-based integrated control panel, EMC-C2 for 1x230 V, EMC-C3 for 3x380-480V, EMC-C4 for 3x230 V spring-type terminals for the control connections (2xAI, 1xAO, 4xDI, 1xDO, 1xRO, 1x RJ45 for Modbus RTU or external control panel/PC tool) Adaptive programming (logic components) Integrated brake chopper from size R2 Start-up with the software Drive Composer entry (free) or PRO, connection via optional USB cable Optional: power choke, EMC-C1, DIN rail mounting (for R0 R2, from R3 integrated)
