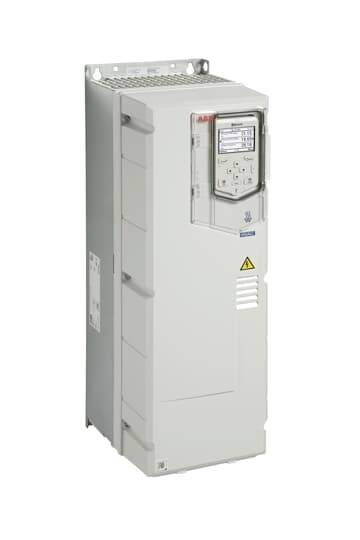

ABB Frequency inverter ACH580-01-062A-4+B 30 kW 480 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Input voltage
480 V
- Product type
Frequency inverter
- Output rating (max.)
30 kW
- Max. frequency
500 Hz
- Frequency range
500 Hz (max)
- Nominal current
62 A
- Depth
265 mm
- Height
685.5 mm
- Width
203 mm
IP55
- Type
ACH580-01-062A-4+B
- Filter class
C2
- Dim
(W x H x D) 203 x 685.5 x 265 mm
- Manufacturer part #
3AUA0000083598
203 mm
685.5 mm
265 mm
TRUE
6
3
2
2
TRUE
0
0
0
1
0
1
2
2
FALSE
TRUE
FALSE
TRUE
TRUE
FALSE
FALSE
TRUE
FALSE
TRUE
FALSE
TRUE
IP55
TRUE
FALSE
FALSE
380-480 V
50/60 Hz
FALSE
0
U converter
3
3
TRUE
TRUE
TRUE
500 Hz
30 kW
30 kW
10 %
5 %
FALSE
TRUE
TRUE
FALSE
FALSE
TRUE
FALSE
FALSE
480 V
62 A
TRUE
12
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3103469 ABB Frequency inverter ACH580-01-062A-4+B 30 kW 480 V
User & Safety Instructions
User & Safety Instructions 3103469 ABB Frequency inverter ACH580-01-062A-4+B 30 kW 480 V
Description
Frequency converter ACH580, 380-480 V, IP55 (option code +B056)
The ACH580 frequency converter offers the best comfort with simple operation and highest energy efficiency, specially adapted to the requirements of air-conditioning and refrigeration systems. The ACH580 can be used to control all common three-phase motors, permanent magnet motors and synchronous relutance motors in HVAC applications. An intuitive control panel with integrated application macro guides the user simply through the commissioning in the respective language.
In addition to the already integrated BACnet MS/TP, other communication protocols are optionally possible.
With the EMC Filter C2 integrated in the public network, the ACH580 frequency converter is used for air conditioning in office/industrial buildings and data centers, in pump controls for cold and warm water or in refrigeration plants.
This text is machine translated.
The ACH580 frequency converter offers the best comfort with simple operation and highest energy efficiency, specially adapted to the requirements of air-conditioning and refrigeration systems. The ACH580 can be used to control all common three-phase motors, permanent magnet motors and synchronous relutance motors in HVAC applications. An intuitive control panel with integrated application macro guides the user simply through the commissioning in the respective language.
In addition to the already integrated BACnet MS/TP, other communication protocols are optionally possible.
With the EMC Filter C2 integrated in the public network, the ACH580 frequency converter is used for air conditioning in office/industrial buildings and data centers, in pump controls for cold and warm water or in refrigeration plants.
This text is machine translated.
