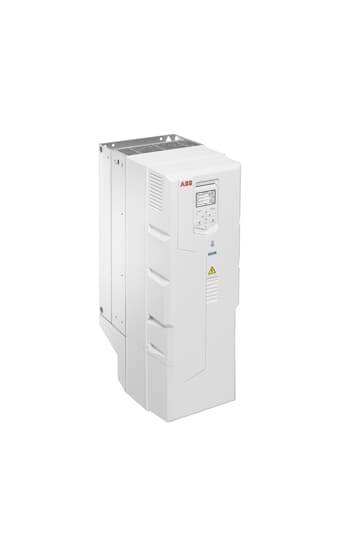

ABB Frequency inverter ACH580-01-145A-4 75 kW 480 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Input voltage
480 V
- Product type
Frequency inverter
- Output rating (max.)
75 kW
- Max. frequency
500 Hz
- Frequency range
500 Hz (max)
- Nominal current
145 A
- Depth
369 mm
- Height
727 mm
- Width
252 mm
IP21
- Type
ACH580-01-145A-4
- Filter class
C2
- Dim
(W x H x D) 252 x 727 x 369 mm
- Manufacturer part #
3AUA0000080529
252 mm
727 mm
369 mm
FALSE
6
3
2
2
TRUE
0
0
0
1
0
1
2
2
FALSE
TRUE
FALSE
TRUE
TRUE
FALSE
FALSE
TRUE
FALSE
TRUE
FALSE
TRUE
IP21
FALSE
FALSE
FALSE
380-480 V
50/60 Hz
FALSE
0
U converter
3
3
FALSE
TRUE
TRUE
500 Hz
75 kW
75 kW
10 %
5 %
FALSE
TRUE
TRUE
FALSE
FALSE
TRUE
FALSE
FALSE
480 V
145 A
TRUE
1
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3103451 ABB Frequency inverter ACH580-01-145A-4 75 kW 480 V
User & Safety Instructions
User & Safety Instructions 3103451 ABB Frequency inverter ACH580-01-145A-4 75 kW 480 V
Description
FREQUENCY CONVERTER ACH580, 380-480 V, IP21
The ACH580 frequency converter offers the best comfort with simple operation and highest energy efficiency, specially adapted to the requirements of air-conditioning and refrigeration systems. The ACH580 can be used to control all common three-phase motors, permanent magnet motors and synchronous relutance motors in HVAC applications. An intuitive control panel with integrated application macro guides the user simply through the commissioning in the respective language.
In addition to the already integrated BACnet MS/TP, other communication protocols are optionally possible.
With the EMC Filter C2 integrated in the public network, the ACH580 frequency converter is used for air conditioning in office/industrial buildings and data centers, in pump controls for cold and warm water or in refrigeration plants.
This text is machine translated.
The ACH580 frequency converter offers the best comfort with simple operation and highest energy efficiency, specially adapted to the requirements of air-conditioning and refrigeration systems. The ACH580 can be used to control all common three-phase motors, permanent magnet motors and synchronous relutance motors in HVAC applications. An intuitive control panel with integrated application macro guides the user simply through the commissioning in the respective language.
In addition to the already integrated BACnet MS/TP, other communication protocols are optionally possible.
With the EMC Filter C2 integrated in the public network, the ACH580 frequency converter is used for air conditioning in office/industrial buildings and data centers, in pump controls for cold and warm water or in refrigeration plants.
