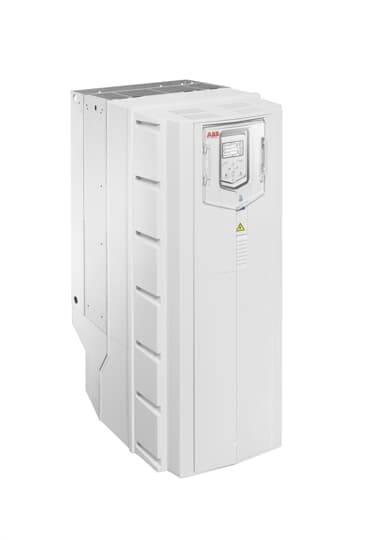

ABB Frequency inverter ACH580-01-246A-4+B 132 kW 480 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Input voltage
480 V
- Product type
Frequency inverter
- Output rating (max.)
132 kW
- Max. frequency
500 Hz
- Frequency range
500 Hz (max)
- Nominal current
246 A
- Depth
393 mm
- Height
965 mm
- Width
300 mm
IP55
- Type
ACH580-01-246A-4+B
- Filter class
C2
- Dim
(W x H x D) 300 x 965 x 393 mm
- Manufacturer part #
3AUA0000083607
300 mm
965 mm
393 mm
TRUE
6
3
2
2
TRUE
0
0
0
1
0
1
2
2
FALSE
TRUE
FALSE
TRUE
TRUE
FALSE
FALSE
TRUE
FALSE
TRUE
FALSE
TRUE
IP55
TRUE
FALSE
FALSE
380-480 V
50/60 Hz
FALSE
0
U converter
3
3
FALSE
TRUE
TRUE
500 Hz
132 kW
132 kW
10 %
5 %
FALSE
TRUE
TRUE
FALSE
FALSE
TRUE
FALSE
FALSE
480 V
246 A
TRUE
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3103476 ABB Frequency inverter ACH580-01-246A-4+B 132 kW 480 V
User & Safety Instructions
User & Safety Instructions 3103476 ABB Frequency inverter ACH580-01-246A-4+B 132 kW 480 V
Description
Frequency converter ACH580, 380-480 V, IP55 (option code +B056)
The ACH580 frequency converter offers the best comfort with simple operation and highest energy efficiency, specially adapted to the requirements of air-conditioning and refrigeration systems. The ACH580 can be used to control all common three-phase motors, permanent magnet motors and synchronous relutance motors in HVAC applications. An intuitive control panel with integrated application macro guides the user simply through the commissioning in the respective language.
In addition to the already integrated BACnet MS/TP, other communication protocols are optionally possible.
With the EMC Filter C2 integrated in the public network, the ACH580 frequency converter is used for air conditioning in office/industrial buildings and data centers, in pump controls for cold and warm water or in refrigeration plants.
This text is machine translated.
The ACH580 frequency converter offers the best comfort with simple operation and highest energy efficiency, specially adapted to the requirements of air-conditioning and refrigeration systems. The ACH580 can be used to control all common three-phase motors, permanent magnet motors and synchronous relutance motors in HVAC applications. An intuitive control panel with integrated application macro guides the user simply through the commissioning in the respective language.
In addition to the already integrated BACnet MS/TP, other communication protocols are optionally possible.
With the EMC Filter C2 integrated in the public network, the ACH580 frequency converter is used for air conditioning in office/industrial buildings and data centers, in pump controls for cold and warm water or in refrigeration plants.
