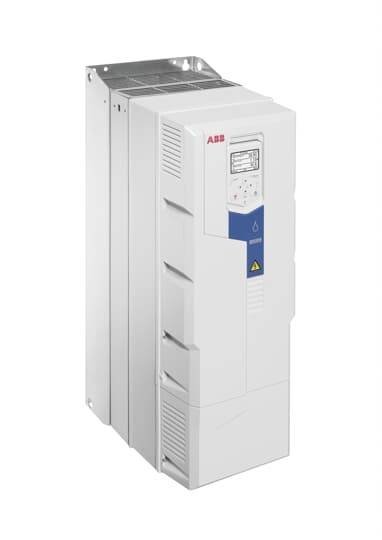

ABB Frequency inverter ACQ580-31-062A-4 30 kW 480 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Input voltage
480 V
- Product type
Frequency inverter
- Output rating (max.)
30 kW
- Max. frequency
500 Hz
- Frequency range
500 Hz (max)
- Nominal current
62 A
- Depth
392.3 mm
- Height
771 mm
- Width
252 mm
IP21
- Type
ACQ580-31-062A-4
- Dim
(W x H x D) 252 x 771 x 392.3 mm
- Manufacturer part #
3AXD50000428786
252 mm
771 mm
392.3 mm
TRUE
6
3
2
2
TRUE
0
0
0
1
0
1
2
2
FALSE
TRUE
FALSE
TRUE
TRUE
FALSE
FALSE
TRUE
FALSE
TRUE
FALSE
TRUE
IP21
TRUE
FALSE
FALSE
380-480 V
50/60 Hz
FALSE
0
U converter
3
3
FALSE
TRUE
TRUE
500 Hz
30 kW
30 kW
10 %
5 %
FALSE
TRUE
TRUE
FALSE
FALSE
TRUE
FALSE
FALSE
480 V
62 A
FALSE
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3103737 ABB Frequency inverter ACQ580-31-062A-4 30 kW 480 V
User & Safety Instructions
User & Safety Instructions 3103737 ABB Frequency inverter ACQ580-31-062A-4 30 kW 480 V
Description
The speed-controlled drives of the ACQ580 series, developed especially for pump applications in the water/sewage sector, have now been supplemented with an Ultra-Low Harmonic (ULH) variant. This new frequency converter enables reliable operation, even in the case of an unstable power supply, because it eliminates disturbing harmonics (harmonics) in the mains. Traditionally, the problem has been solved with harmonic harmonics with filters, multi-pulse transformers and oversized components. However, the ACQ580 does not require external filters or special equipment. "The new ABB frequency converter includes a component for reducing harmonics, including an active power supply unit and an integrated harmonic filter," says Florian Groß, Product Manager Drives at ABB Motion Germany. In contrast to a conventional frequency converter with 45 % THDI (Total Harmonic Distortion or total harmonic distortion) the Ultra-Low Harmonic Drive ACQ580 reduces the harmonic harmonics to less than 3 %.
