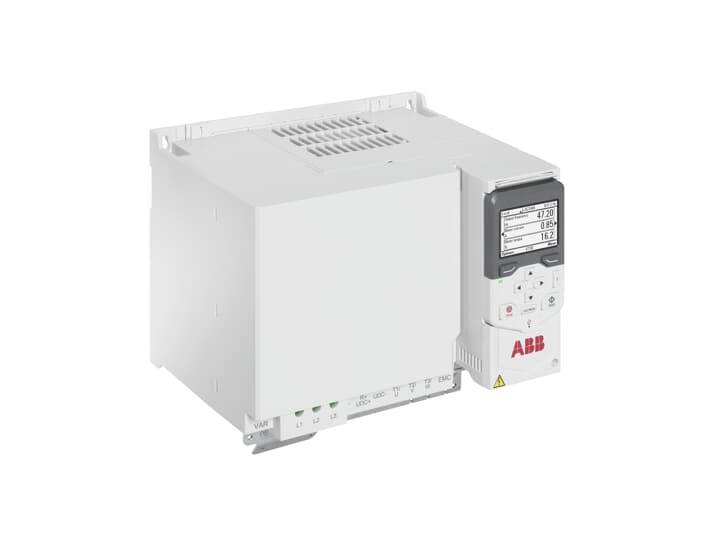

ABB Frequency inverter ACS480-04-033A-4 15 kW 480 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Input voltage
480 V
- Product type
Frequency inverter
- Output rating (max.)
15 kW
- Max. frequency
500 Hz
- Frequency range
500 Hz (max)
- Nominal current
32 A
- Depth
213 mm
- Height
240 mm
- Width
262 mm
IP20
- Type
ACS480-04-033A-4
- Filter class
C2
- Dim
(W x H x D) 262 x 240 x 213 mm
- Manufacturer part #
3AXD50000199068
262 mm
240 mm
213 mm
FALSE
6
3
2
2
FALSE
0
0
0
1
0
1
0
2
FALSE
TRUE
FALSE
TRUE
TRUE
FALSE
FALSE
TRUE
FALSE
TRUE
FALSE
TRUE
IP20
FALSE
FALSE
FALSE
380-480 V
50/60 Hz
FALSE
0
U converter
3
3
FALSE
TRUE
TRUE
500 Hz
15 kW
15 kW
10 %
5 %
FALSE
TRUE
TRUE
FALSE
FALSE
TRUE
FALSE
FALSE
480 V
32 A
FALSE
Other
Documents & Downloads
Datasheet
Datasheet 3103702 ABB Frequency inverter ACS480-04-033A-4 15 kW 480 V
User & Safety Instructions
User & Safety Instructions 3103702 ABB Frequency inverter ACS480-04-033A-4 15 kW 480 V
Description
FREQUENCY CONVERTER ACS480, 380 - 480V, IP20
Everything, WAS You Need - for all standard requirements
The ACS480 is one of the excellent standard frequency converters in every respect¬and was specially developed for energy-efficient and simple optimization of the operation of pumps, fans and compressors. In a compact package you get exactly the functionality you need for a reliable and intuitive control of many standard applications¬. The ACS480 is equipped with all the essential functions such as PID, pump and fan macros and timers, thus optimized for the control of applications with variable torque via various built-in and pre¬programmed features.
The built-in category C2 EMC filter ensures compliance with the latest European and international standards, allowing the frequency converter to be used in industry and trade. For the protection of persons and plants the frequency converter¬has as standard important safety functions such as the torque (STO), which has been safely switched off by the TÜV.
