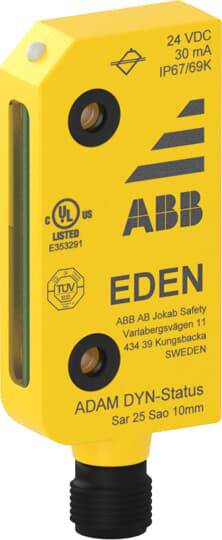

ABB Infrared sensor Inductive M12 AS interface Adam DYN-Status M12-5
EAN:
Part number:
Item no:
Product type
Infrared sensor
Max. operating voltage
24 V
Outputs
AS interface
Model
Inductive
Connector
M12
Datasheet (PDF)
Technical specifications
- Product type
Infrared sensor
- Type
Adam DYN-Status M12-5
- Min. operating voltage
0 V
- Max. operating voltage
24 V
- Operating voltage
0 - 24 V
- Outputs
AS interface
- Switching frequency
15 Hz
- Model
Inductive
- Connector
M12
- Size
M12
- Enclosure material
Plastic
IP67
- Min. temperature
-40 °C
- Max. temperature
70 °C
- Length
12 mm
- Width
30 mm
- Height
75.2 mm
- Dim
(L x W x H) 12 x 30 x 75.2 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2322355 ABB Infrared sensor Inductive M12 AS interface Adam DYN-Status M12-5
User & Safety Instructions
User & Safety Instructions 2322355 ABB Infrared sensor Inductive M12 AS interface Adam DYN-Status M12-5
Description
Eden DYN (also with StatusBus), OSSD and AS-i are non-contact safety sensors with coding, consisting of Adam and Eve. Eden is used on locked safety devices such as doors, gates and hoods and for secure position detection. They are ideally suited for harsh environments, have IP69K and a temperature range of -40 to +70 °C. There are versions with built-in, monitored reset with reset display. Eden DYN is suitable for single-channel DYNlink safety circuits with Vital or Pluto. Eden OSSD for two-channel safety circuits with safety relays or safety PLCs. Eden AS-i operate directly on the AS-i bus. Eden corresponds to model 4, optionally with high or low coding stage according to EN ISO 14119 and reaches up to PLe (EN ISO 13849-1) or SIL3 (EN 61508, EN 62061), even in series connection/cascading of up to 30 sensors. Variable mounting and 360 ° scanning are possible.
