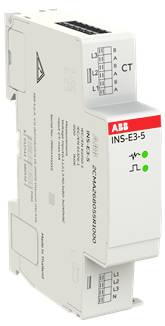

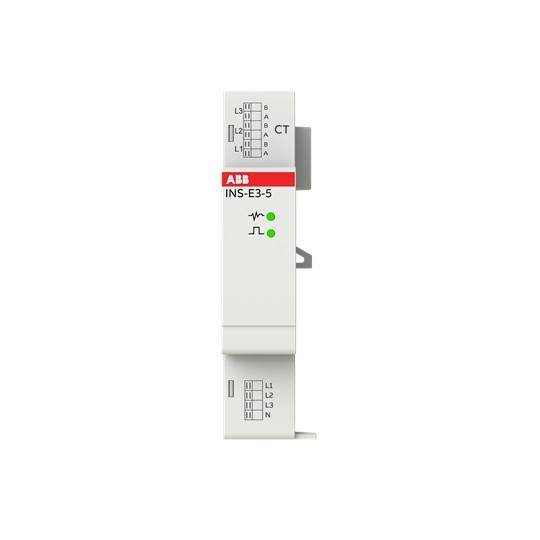

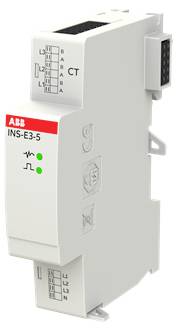

ABB INS-E3-5 Energy measurement module
EAN:
Part number:
Item no:
Product type
Energy measurement module
Manufacturer part #
2CMA268055R1000
Dim
(W x H x D) 17.4 x 87 x 64.9 mm
Operating voltage
240 V
Content
1 pc(s)
Technical specifications
- Manufacturer part #
2CMA268055R1000
- Product type
Energy measurement module
- Dim
(W x H x D) 17.4 x 87 x 64.9 mm
- Operating voltage
240 V
- Content
1 pc(s)
- Width
17.4 mm
- Height
87 mm
- Depth
64.9 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3785466 ABB INS-E3-5 Energy measurement module
Description
The energy measuring module can be mounted without tools to the InSite energy monitoring control unit SCU200 and is used for indirect energy measurement of three-phase networks via current transformers. It enables the connection of 3 pieces current transformers (1A or 5A) for measuring the consumed and generated energy with an accuracy of 1% as well as the detection of the direction of energy flow. The current transformer connections as well as the voltage inputs are equipped with plug-in terminals.
