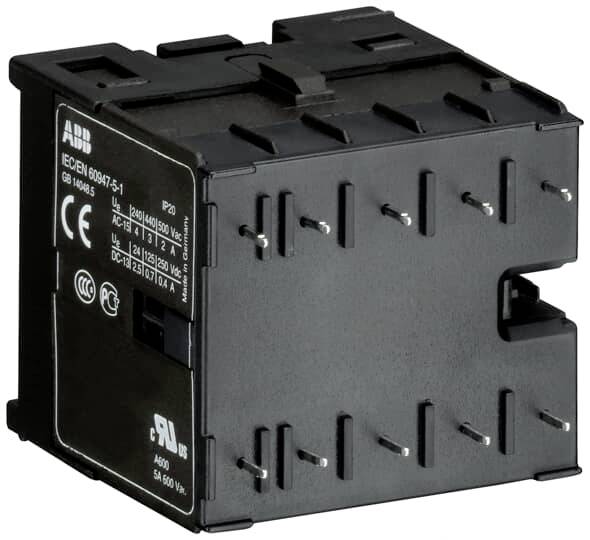

ABB K6-22Z-P-85 Mini contactor 2 makers, 2 breakers 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mini contactor
No. of pins
4-pin
Connection
Screw terminal
Type
K6-22Z-P-85
Contact type
2 makers
2 breakers
Datasheet (PDF)
Technical specifications
- Product type
Mini contactor
- Type
K6-22Z-P-85
- No. of pins
4-pin
- Contact type
2 makers
2 breakers
- Auxiliary contact type
2 makers
- Control voltage (min.)
380 V AC
- Control voltage (max.)
415 V AC
- Control voltage range
380 - 415 V AC
- Switching voltage (max.)
230 V DC/AC
- Permanent current (max.)
3 A
- Connection
Screw terminal
- Content
1 pc(s)
PCB (Printed Circuit Board)
FALSE
2
2
3 A
FALSE
0
380-415 V
380-415 V
FALSE
Soldering connection
0
0
AC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3111511 ABB K6-22Z-P-85 Mini contactor 2 makers, 2 breakers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3111511 ABB K6-22Z-P-85 Mini contactor 2 makers, 2 breakers 1 pc(s)
Description
The K/KC 6 miniature auxiliary contactors have a relay function and are used in a range with very small dimensions and with screw, solder pin and flat plug connections. The 4-pin devices offer a wide range of applications, even in unfavorable spaces. With their AC or DC control they switch control circuits or load circuits up to 4 A (230 V). Expandable accessories are fire extinguishers and 2-pin auxiliary switches which can be attached on either side or front.
