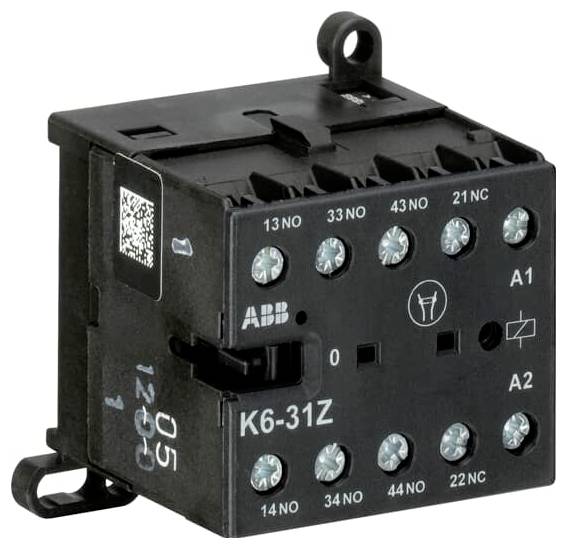

ABB K6-31Z-85 Auxiliary contactor 4 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary contactor
No. of pins
4-pin
Current load
4 A
Connection
Screws
Type
K6-31Z-85
Technical specifications
- Product type
Auxiliary contactor
- Type
K6-31Z-85
- No. of pins
4-pin
- Auxiliary contact type
3 makers
1 breaker
- Control voltage (min.)
380 V AC
- Control voltage (max.)
415 V AC
- Control voltage range
380 - 415 V AC
- Switching voltage (min.)
690 V AC
250 V DC
- Switching voltage (max.)
690 V AC
250 V DC
- Permanent current (max.)
4 A
- Current load
4 A
- Mounting type
DIN rail
- Connection
Screws
- Width
52.5 mm
- Height
57.5 mm
- Depth
46.5 mm
- Dim
(W x H x D) 52.5 x 57.5 x 46.5 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3786896 ABB K6-31Z-85 Auxiliary contactor 4 A 1 pc(s)
Description
The K/KC 6 miniature auxiliary contactors have a relay function and are used in a range with very small dimensions and with screw, solder pin and flat plug connections. The 4-pin devices offer a wide range of applications, even in unfavorable spaces. With their AC or DC control they switch control circuits or load circuits up to 4 A (230 V). Expandable accessories are fire extinguishers and 2-pin auxiliary switches which can be attached on either side or front.
