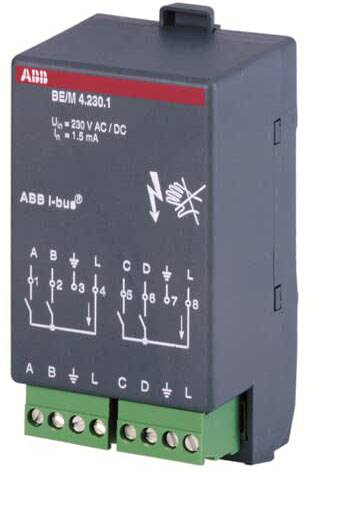

ABB KNX 2CDG110005R0011 Binary input BE/M4.230.1
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Width in division units: -
- Bus module removable: No.
- With LED display: No.
- Number of inputs: 4
- With bus connection: No.
- Bidirectional radio: No.
- Bus system Powernet: No.
- Other bus systems: None
- KNX bus system: Yes
- Bus system Radio bus: No.
- Bus system LON: No.
- KNX radio bus system: No.
- Protection class (IP): IP54
- Min Depth of socket: -
- Mounting type: Installation
- External query voltage required: No.
- Control LED: No.
- Type of input voltage: AC
- Input voltage 10;;230
- Product type
Binary input
- Series
KNX
IP54
- Operating voltage
230 V DC/AC
- Data transfer (Smart Home)
Wired
- Channels
4
- Mounting type
Recess-mount
- Width
49 mm
- Height
42 mm
- Depth
93 mm
- Dim
(W x H x D) 49 x 42 x 93 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
100 g
- Features
Signal input
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2325055 ABB KNX 2CDG110005R0011 Binary input BE/M4.230.1
User & Safety Instructions
User & Safety Instructions 2325055 ABB KNX 2CDG110005R0011 Binary input BE/M4.230.1
Description
Module for plugging into the room controller base unit. It has 4 inputs for connecting 230 V contacts (AC or DC). The voltage is provided by the module.
