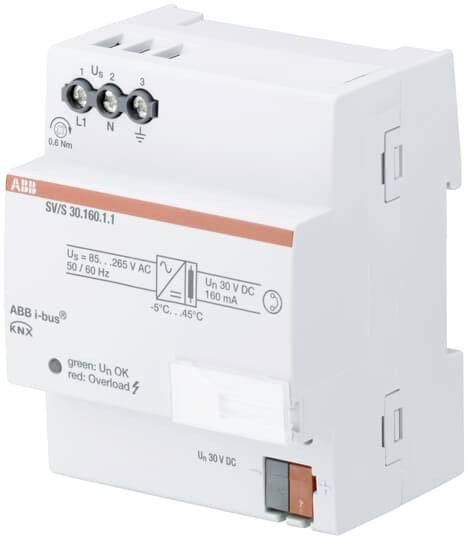

ABB KNX 2CDG110144R0011 Voltage supply SV/S 30.160.1.1
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Voltage supply
- Series
KNX
- Channels
1
- Factory colour
Multicolour
- Width
72 mm
- Height
90 mm
- Depth
64.5 mm
- Dim
(W x H x D) 72 x 90 x 64.5 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
0.3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2326853 ABB KNX 2CDG110144R0011 Voltage supply SV/S 30.160.1.1
User & Safety Instructions
User & Safety Instructions 2326853 ABB KNX 2CDG110144R0011 Voltage supply SV/S 30.160.1.1
Description
The KNX power supply 160mA generates and monitors the KNX system voltage (SELV). The integrated reactor decouples the bus line from the power supply. The voltage output is short-circuit-proof and overload-proof. The two-color LED indicates the status of the device. The voltage supply has a wide-range input for the supply voltage in the range 85…265 V AC, 50/60 Hz.
