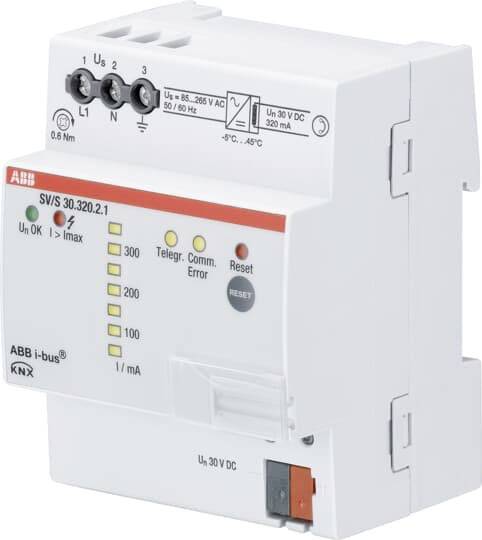

ABB KNX 2CDG110145R0011 Voltage supply SV/S30.320.2.1
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Voltage supply
- Series
KNX
- Data transfer (Smart Home)
Wired
- Channels
1
- Mounting type
DIN rail
- Factory colour
Multicolour
- Hub
Not required, optional for remote access
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2329351 ABB KNX 2CDG110145R0011 Voltage supply SV/S30.320.2.1
User & Safety Instructions
User & Safety Instructions 2329351 ABB KNX 2CDG110145R0011 Voltage supply SV/S30.320.2.1
Description
The KNX power supply 320 mA with diagnostic function and extended LED display generates and monitors the KNX system voltage (SELV). The integrated reactor decouples the bus line from the power supply. The voltage output is short-circuit-proof and overload-proof. The two-color LED indicates the status of the device. The voltage supply has a wide-range input for the supply voltage in the range 85…265 V AC, 50/60 Hz.
