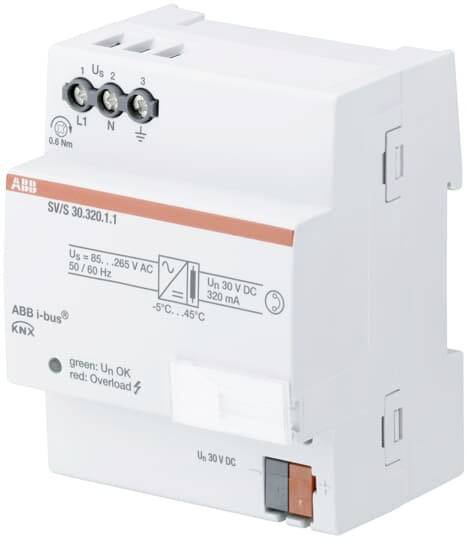

ABB KNX 2CDG110166R0011 Voltage supply SV/S 30.320.1.1
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Voltage supply
- Series
KNX
- Data transfer (Smart Home)
Wired
- Channels
1
- Factory colour
Multicolour
- Width
72 mm
- Height
90 mm
- Depth
64.5 mm
- Dim
(W x H x D) 72 x 90 x 64.5 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
300.00
DRA (DIN-rail adapter)
TRUE
FALSE
FALSE
4
None
FALSE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2328935 ABB KNX 2CDG110166R0011 Voltage supply SV/S 30.320.1.1
User & Safety Instructions
User & Safety Instructions 2328935 ABB KNX 2CDG110166R0011 Voltage supply SV/S 30.320.1.1
Description
The KNX power supply 320 mA generates and monitors the KNX system voltage (SELV). The integrated reactor decouples the bus line from the power supply. The voltage output is short-circuit-proof and overload-proof. The two-color LED indicates the status of the device. The voltage supply has a wide-range input for the supply voltage in the range 85…265 V AC, 50/60 Hz.
