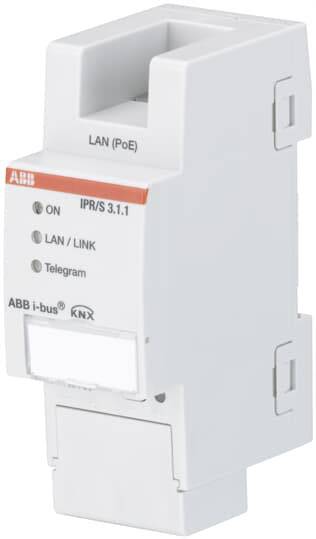

ABB KNX 2CDG110175R0011 IP router IPR/S3.1.1
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
IP router
- Series
KNX
IP20
- Data transfer (Smart Home)
Wired
- Mounting type
DIN rail
- Factory colour
Grey-white (RAL 7035)
Grey
- Width
41.0000 mm
- Height
92.0000 mm
- Depth
63.5 mm
- Dim
(W x H x D) 41.0000 x 92.0000 x 63.5 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
120.00
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2329521 ABB KNX 2CDG110175R0011 IP router IPR/S3.1.1
User & Safety Instructions
User & Safety Instructions 2329521 ABB KNX 2CDG110175R0011 IP router IPR/S3.1.1
Description
Forms the interface between KNX installations and IP networks and works according to the KNXnet/IP specification (tunneling and routing). The IPR/S can be used as a fast line or area handler (routing). The complete filter table for all main groups (0-31) can be loaded. With the ETS KNX devices can be programd via LAN. 5 tunneling servers are available for this and for other clients. The IP address of the IPR/S can be set permanently or received from a DHCP server. Power is supplied via 12 to 30 V DC or alternatively via Power-over-Ethernet (PoE) according to IEEE 802.3af Class 1. As an alternative to KNX standard communication (multicast), up to 10 IPR/S 3.1.1 can communicate via unicast.
