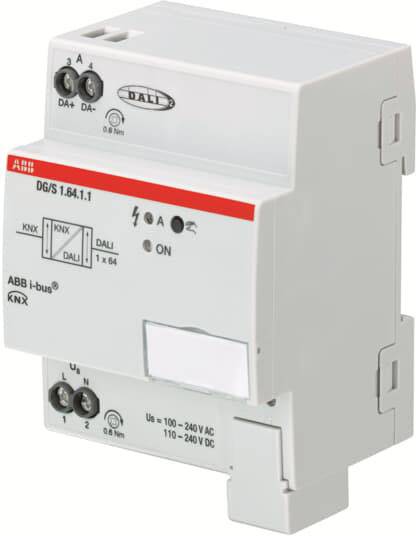

ABB KNX 2CDG110198R0011 Gateway DG/S1.64.1.1
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Gateway
- Series
KNX
IP20
- Operating voltage
264 V
- Data transfer (Smart Home)
Wired
- Channels
64
- Factory colour
Multicolour
- Width
77.0000 mm
- Height
92.0000 mm
- Depth
65.0000 mm
- Dim
(W x H x D) 77.0000 x 92.0000 x 65.0000 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2326715 ABB KNX 2CDG110198R0011 Gateway DG/S1.64.1.1
User & Safety Instructions
User & Safety Instructions 2326715 ABB KNX 2CDG110198R0011 Gateway DG/S1.64.1.1
Description
For controlling DALI subscribers via ABB i-bus®. One DALI output for up to 64 DALI subscribers. The DALI power supply is integrated. The control can be performed per DALI subscriber (64), via groups (16), together in broadcast or via scenes (16). Extensive error and fault messages are available. DALI emergency light converter(64) according to EN 62386-202 are supported. The function test and endurance test can be triggered via KNX via the emergency light converter and the result can be made available on the KNX. Slave, staircase light, lock and priority control functions are integrated. The DALI message frame rate can be changed. A separate diagnostic and commissioning tool, ABB i-bus Tool, is available for individual assignment of DALI nodes or group assignment.
