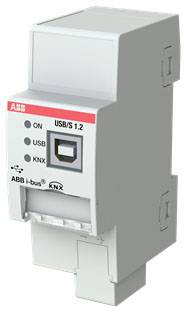

ABB KNX 2CDG110243R0011 USB interface USB/S1.2
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
USB interface
- Series
KNX
- Used at
Fixed
IP20
- Data transfer (Smart Home)
Wired
- Mounting type
DIN rail
- Factory colour
Grey
Grey-white (RAL 7035)
- Width
41.0000 mm
- Height
92.0000 mm
- Depth
63.5 mm
- Dim
(W x H x D) 41.0000 x 92.0000 x 63.5 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
- Weight
0.0800
- Type A
USB
- Type B
USB
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2333367 ABB KNX 2CDG110243R0011 USB interface USB/S1.2
User & Safety Instructions
User & Safety Instructions 2333367 ABB KNX 2CDG110243R0011 USB interface USB/S1.2
Description
The ABB i-bus® KNX USB interface USB/S 1.2 is a KNX modular device (REG) in Pro M design for installation in a distributor on a 35 mm mounting rail. The USB interface enables communication between the ETS and a KNX system (programming, bus monitor, group monitor). Visualizations or other clients can also access KNX via USB. The device is connected to the computer via a USB cable type B and is ready for use as soon as USB is connected. The necessary driver is automatically installed under Windows when you connect it for the first time. The operating status and message frame traffic are displayed via 3 LEDs. The KNX part and the USB part are electrically isolated from each other.
