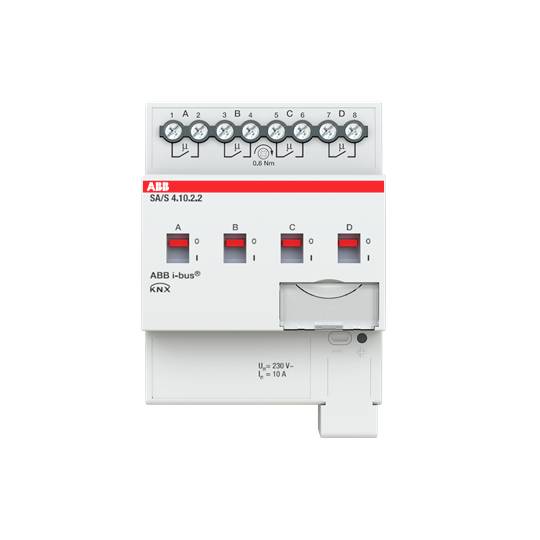

ABB KNX 2CDG110258R0011 Actuator SA/S4.10.2.2
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Actuator
- Series
KNX
- Max. switching capacity
2500 W
IP20
- Operating voltage
110 V
230 V
2500 W
- Data transfer (Smart Home)
Wired
- Channels
4
- Mounting type
DIN rail
- Width
300 mm
- Height
200 mm
- Depth
64.5 mm
- Dim
(L x W x H) 400 cm x 300 mm x 200 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
1000 g
- Length
400 cm
DRA (DIN-rail adapter)
10 A
2500 W
110-230 V
TRUE
FALSE
FALSE
2500 W
FALSE
4
0
4
10 A
None
FALSE
FALSE
TRUE
TRUE
IP20
TRUE
FALSE
FALSE
FALSE
FALSE
64.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3104017 ABB KNX 2CDG110258R0011 Actuator SA/S4.10.2.2
User & Safety Instructions
User & Safety Instructions 3104017 ABB KNX 2CDG110258R0011 Actuator SA/S4.10.2.2
Description
Switches electrical consumers via ABB i-bus® with 2, 4, 8 or 12 independent potential-free contacts. For each output the manual operation of the contact is possible. The switch state of the contact is displayed. The 10A series is particularly suitable for switching resistive, inductive and capacitive loads as well as fluorescent lamp loads according to DIN EN 60669.
