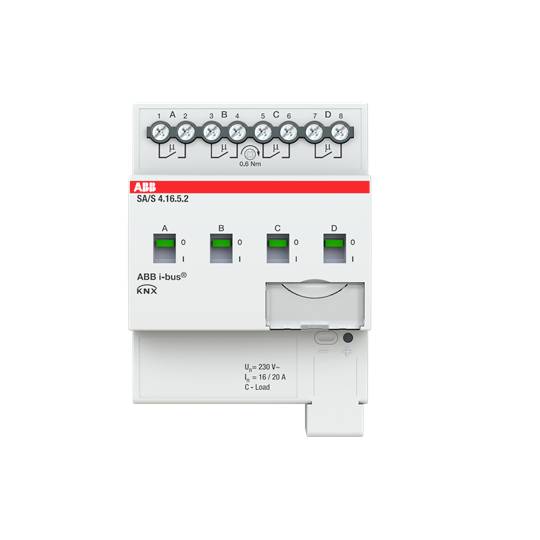

ABB KNX 2CDG110266R0011 Actuator SA/S4.16.5.2
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Actuator
- Series
KNX
- Max. switching capacity
3680 W
IP20
- Operating voltage
110 V
230 V
3680 W
- Data transfer (Smart Home)
Wired
- Channels
4
- Mounting type
REG
- Factory colour
Multicolour
- Width
100 mm
- Height
50 mm
- Depth
150 mm
- Dim
(W x H x D) 100 x 50 x 150 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
310 g
- Features
Signal input
DRA (DIN-rail adapter)
20 A
3680 W
110-230 V
TRUE
FALSE
FALSE
3680 W
FALSE
4
0
4
20 A
None
FALSE
TRUE
TRUE
TRUE
IP20
TRUE
FALSE
FALSE
FALSE
FALSE
64.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3104025 ABB KNX 2CDG110266R0011 Actuator SA/S4.16.5.2
User & Safety Instructions
User & Safety Instructions 3104025 ABB KNX 2CDG110266R0011 Actuator SA/S4.16.5.2
Description
Switches electrical consumers via ABB i-bus® with 2, 4, 8 or 12 independent potential-free contacts. For each output the manual operation of the contact is possible. The switch state of the contact is displayed. The 16/20A, 16A-AC3, C-Load series is particularly suitable for switching loads with high inrush current peaks such as bulbs with compensation capacitors or fluorescent lamps loads according to DIN EN 60669.
