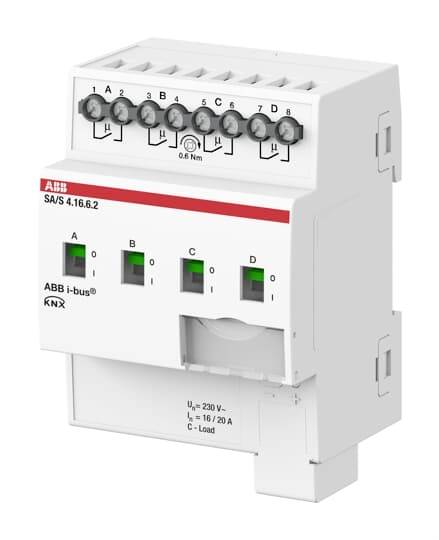

ABB KNX 2CDG110270R0011 Actuator SA/S4.16.6.2
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Actuator
- Series
KNX
- Max. switching capacity
3680 W
IP20
- Operating voltage
110 V
230 V
3680 W
- Data transfer (Smart Home)
Wired
- Channels
4
- Factory colour
Multicolour
- Width
150 mm
- Height
50 mm
- Depth
150 mm
- Dim
(L x W x H) 150 cm x 150 mm x 50 mm
- Hub
Not required, optional for remote access
n.rel.
- Features
Test function
- Length
150 cm
DRA (DIN-rail adapter)
20 A
3680 W
110-230 V
TRUE
FALSE
FALSE
3680 W
FALSE
4
0
4
20 A
None
FALSE
TRUE
TRUE
TRUE
IP20
TRUE
FALSE
FALSE
FALSE
FALSE
64.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3104029 ABB KNX 2CDG110270R0011 Actuator SA/S4.16.6.2
User & Safety Instructions
User & Safety Instructions 3104029 ABB KNX 2CDG110270R0011 Actuator SA/S4.16.6.2
Description
Switches 4 independent electrical consumers via ABB i-bus® KNX with floating contacts. The switch actuator has an integrated energy function and possesses a current measurement for each output. This includes an easy-to-use calculation of power and power consumption per output or group of outputs. An integrated load control object enables easy integration into a load management system. Each output can be operated manually and has a status indicator. The 16/20A, 16A-AC3 (C-Load) device is particularly suitable for switching loads with high inrush current peaks e.g. LED lamps or fluorescent lamps loads.
