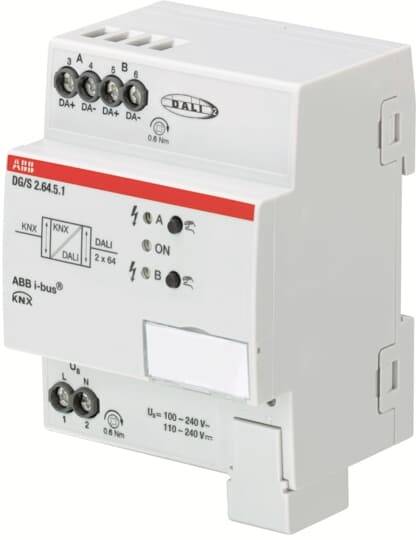

ABB KNX 2CDG110274R0011 Gateway DG/S2.64.5.1
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Gateway
- Series
KNX
IP20
- Data transfer (Smart Home)
Wired
- Channels
2
- Factory colour
Multicolour
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
- Weight
0
- Features
Dimmer function
DRA (DIN-rail adapter)
Light system interface/DALI
AC/DC
2
4 W
TRUE
FALSE
FALSE
4
Other
FALSE
FALSE
FALSE
FALSE
FALSE
TRUE
FALSE
FALSE
IP20
TRUE
FALSE
FALSE
64
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3104033 ABB KNX 2CDG110274R0011 Gateway DG/S2.64.5.1
User & Safety Instructions
User & Safety Instructions 3104033 ABB KNX 2CDG110274R0011 Gateway DG/S2.64.5.1
Conformity certificate
Conformity certificate 3104033 ABB KNX 2CDG110274R0011 Gateway DG/S2.64.5.1
Description
Single-Master DALI controller certified according to DALI-2 (EN 62386). The device is used to control DALI or DALI-2 subscribers via ABB i-bus®. Two DALI outputs for up to 2x64 DALI subscribers. The DALI power supply is integrated. The control and status feedback is performed via ABB i-bus® KNX PRO DALI subscriber (2x64), with light groups (2x16), together in broadcast or by scenes (2x16). DALI devices of the type DT1 (self-powered emergency power converter according to EN 62386-202) and type DT8 (color temperature TC & RGB(W) according to EN 62386-209) are supported. Other DALI nodes, e.g. DT6, can be controlled via standard DALI commands in accordance with ENb62386-102.
Slave, staircase, forced, lock and scene functions are integrated. Setting/dimming color functions, HSV(W), Dim2Warm, HCL are possible. Standby shutdown in combination with a KNX switching actuator (e.g. SA/S), 4 sequencers per DALI output and the possibility of integrating the DALI gateway into a load control system is possible
A separate software tool (ABB i-bus® tool) is available for diagnostics and individual changes to the DALI address or group assignment.
This text is machine translated.
Slave, staircase, forced, lock and scene functions are integrated. Setting/dimming color functions, HSV(W), Dim2Warm, HCL are possible. Standby shutdown in combination with a KNX switching actuator (e.g. SA/S), 4 sequencers per DALI output and the possibility of integrating the DALI gateway into a load control system is possible
A separate software tool (ABB i-bus® tool) is available for diagnostics and individual changes to the DALI address or group assignment.
This text is machine translated.
