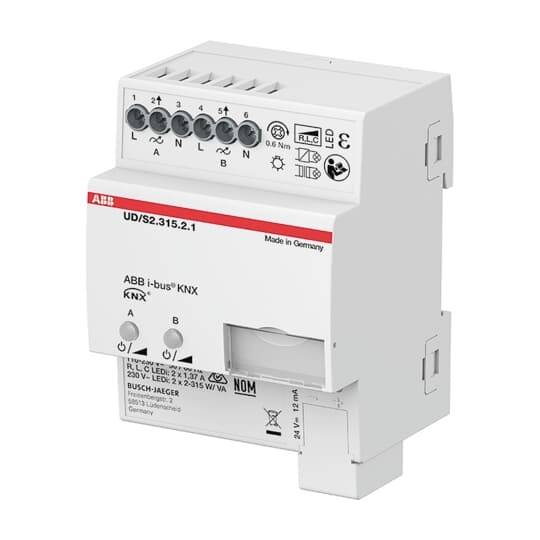

ABB KNX 2CKA006197A0053 LED dimmer UD/S2.315.2.1

Multi-channel universal dimming actuator optimized for dimming retrofit LED lamps (Ledi). Also suitable for dimming light bulbs, low voltage halogen lamps with conventional or electronic transformers, 230 V halogen lamps and dimmable halogen energy saving lamps. Automatic load detection (can be deactivated). Separate N-connection per channel. Parallel connection of the outputs for increasing the output power possible. Outputs can be connected in groups in parallel. Minimum load: 2W Manual operation on the device is also possible without bus voltage or in unprogrammed state. The device can also be programmed without a 230 V supply voltage supplied. Extensive test and diagnostic functions via the i-bus tool. Fast parameterization in the ETS using copied channel templates. With integrated bus coupler. Nominal power at 230 V~ Mains voltage 230 V~ Light and halogen lamps 2 x 315 W/VA up to 1 x 500 W/VA. Dimmable 230 V~ Ledi:2 x 315 W/VA to 1 x 500 W/VA in phase section, 2 x 120 W/VA to 1 x 200 W/VA in phase section. Inductive L-transformers with LED/low-voltage halogen lamp 2 x 315 W/VA up to 1 x 500 W/VA. Electronic C-transformers with LED/low-voltage halogen lamp 2 x 315 W/VA up to 1 x 500 W/VA. Electronic Transformers with LED/low voltage halogen lamp 2 x 120 W/VA up to 1 x 200 W/VA
