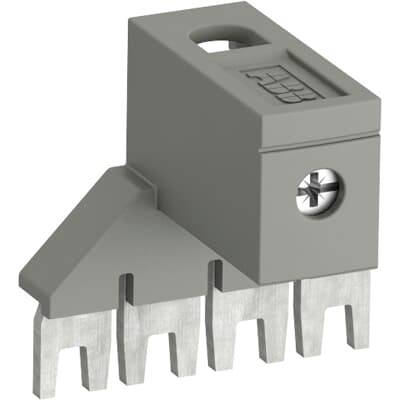

ABB LG16-4 Parallel connector 2 pc(s)

Parallel and series connection 3-pole contactors: For one star point (3 parallel connected poles) To connect poles in parallel and thus increase the AC load flowing through the current path from the poles LP and LY connected in parallel. The respective conductor cross-section can limit the maximum permissible current. See the table below for more information. For series connection of poles, which increases the DC load switchable from poles LP and LY (only LY16-4 and LY38-4 can be cut to length).
