ABB MBP11/3K EXTERNER 4NWP104041R0001 Transfer switch
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Transfer switch
- Nominal power
3680 VA
- No. of outputs
7 x
- Output
IEC C13 socket
- Output voltage (max.)
230 V
- Output voltage (min.)
230 V
- Dim
(W x H x D) 430 x 43 x 315 mm
- Width
430 mm
- Height
43 mm
- Depth
315 mm
- Type
MBP11/3K EXTERNER
- Features
Switching module
430 mm
43 mm
315 mm
Other
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3103761 ABB MBP11/3K EXTERNER 4NWP104041R0001 Transfer switch
User & Safety Instructions
User & Safety Instructions 3103761 ABB MBP11/3K EXTERNER 4NWP104041R0001 Transfer switch
Description

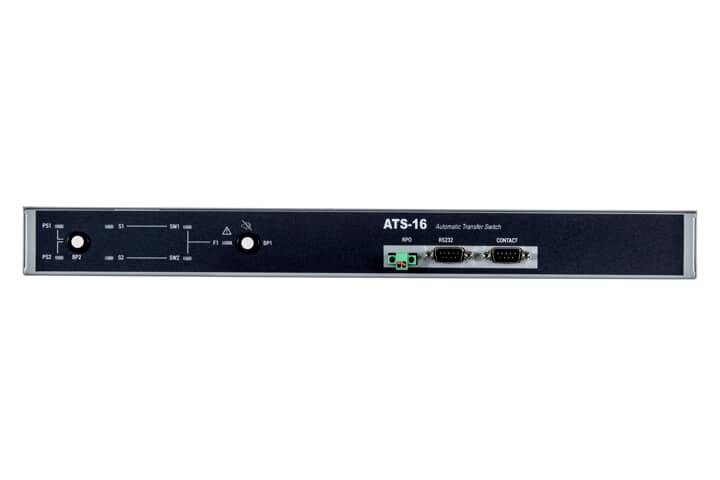

The ATS-16 automatic transfer switch is an ideal supplement to the PowerValue 11RT G2 1-3kVA UPS systems and allows automatic power switching in the event of a power failure. The transfer switch is specially designed for installation in 19-inch cabinets and has a net size of 430x44x350 mm (WxHxT). The transfer switch has two inputs, each of which can be operated with an IEC320 C20 plug and 230 V / 16 A. The outputs consist of an IEC 320 C19 plug with 230 V / 16 A and two groups of three IEC 320 C13 sockets with 230V / 10A each. The ATS-16 has a maximum switching time of 15 ms. During the switch-over time to the second network, for example the generator network, the loads are still protected by the UPS. The documentation of the transfer switch is available in German and English.
