ABB MC1A310AH6 Mini contactor 3 makers 4 kW 9 A + auxiliary contact Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mini contactor
No. of pins
3-pin
Current load
9 A
Power
4 kW
Connection
CEE 7/16 CEE plug
Technical specifications
- Packaging type
Piece
- Product type
Mini contactor
- Type
MC1A310AH6
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
1 maker
- Control voltage (min.)
220 V AC
- Control voltage (max.)
220 V AC
- Control voltage range
220 - 220 V AC
- Switching voltage (max.)
690 V DC/AC
- Permanent current (max.)
20 A
- Current load
9 A
4 kW
- Features
+ auxiliary contact
- Mounting type
DIN rail
- Connection
CEE 7/16 CEE plug
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3783226 ABB MC1A310AH6 Mini contactor 3 makers 4 kW 9 A + auxiliary contact Piece 1 pc(s)
Description

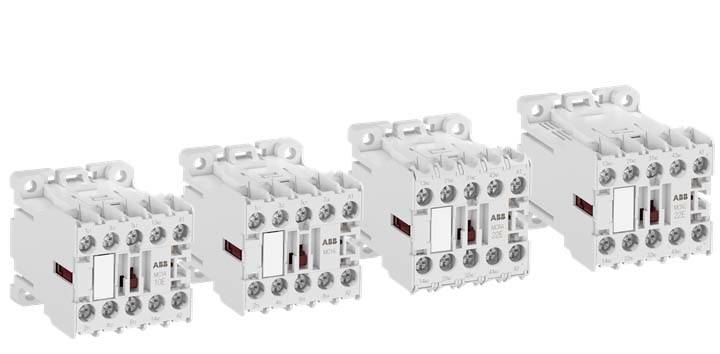

The MC1A mini-contactor is a size-optimized 3-pin contactor with an integrated auxiliary contact, AC-current control and screw connections. It provides the optimum solution when high performance is required but space is limited. These miniature contactors can be used in residential buildings, commercial buildings and many industrial applications to control single or three-phase loads up to 4 kW (AC-3) and 20A (AC-1) at 690 V or to control signals. In addition, up to 6 additional auxiliary contacts can be mounted on the front or side. The contactor is suitable for DIN rail or wall mounting.
